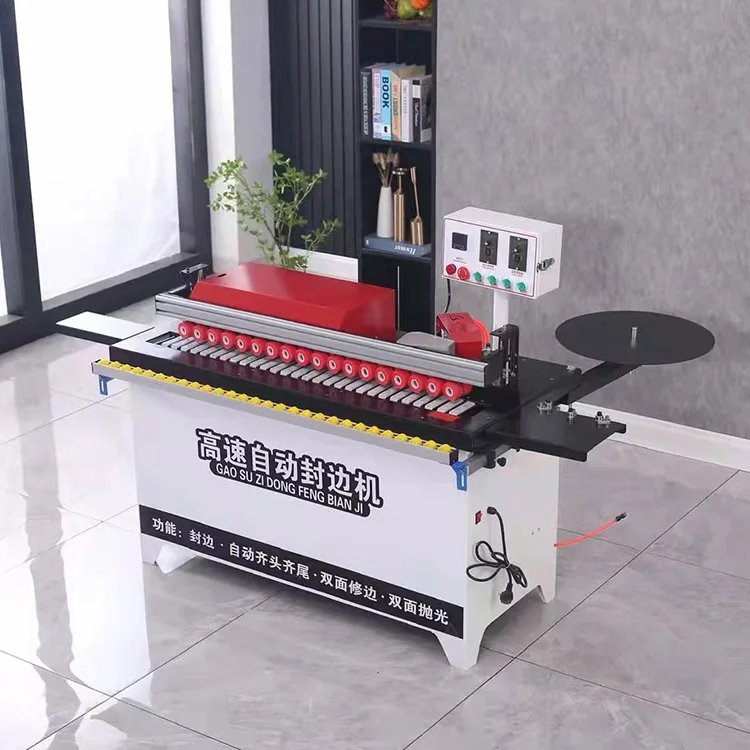

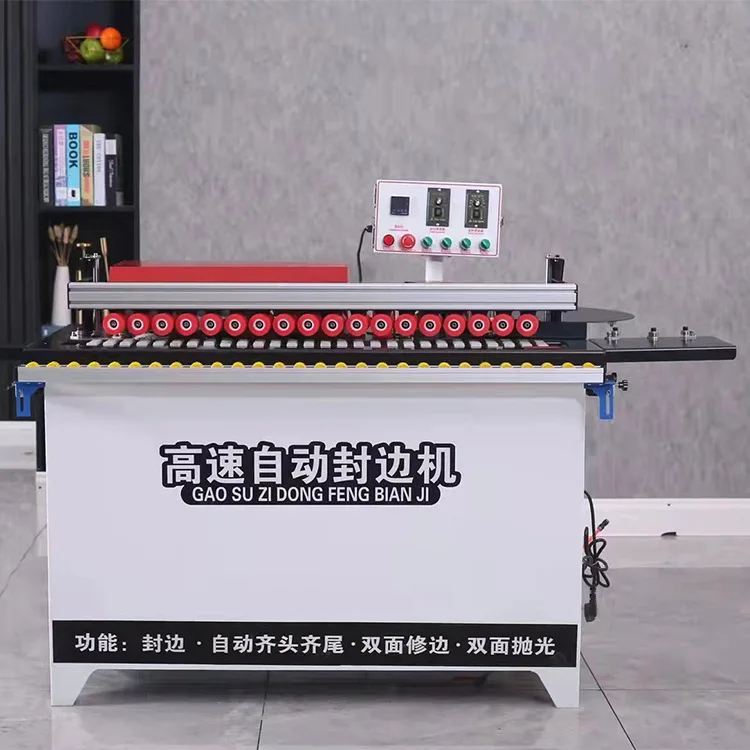

DW802 Edge Banding Machine

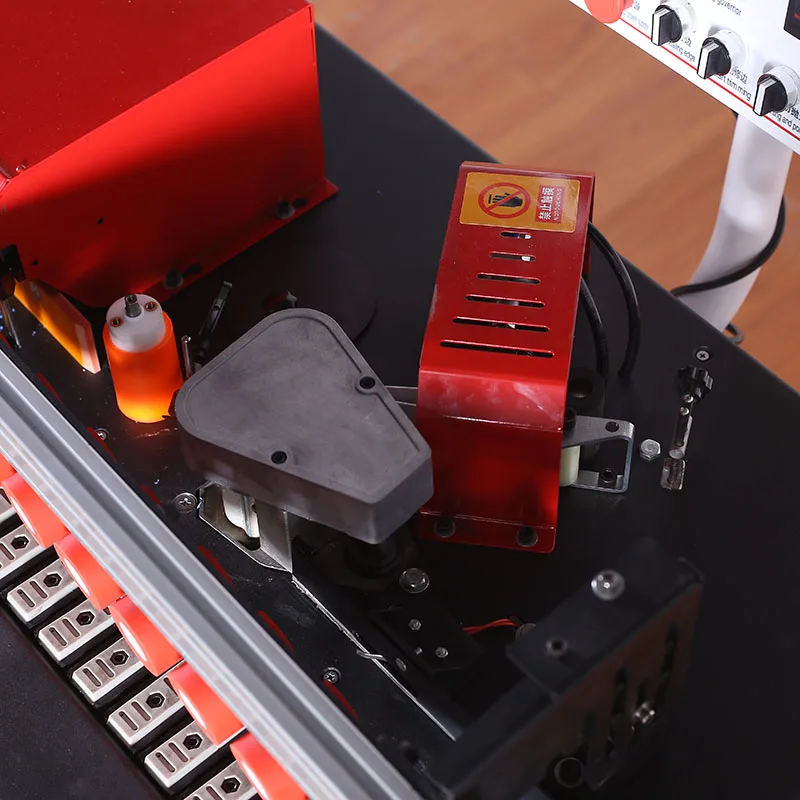

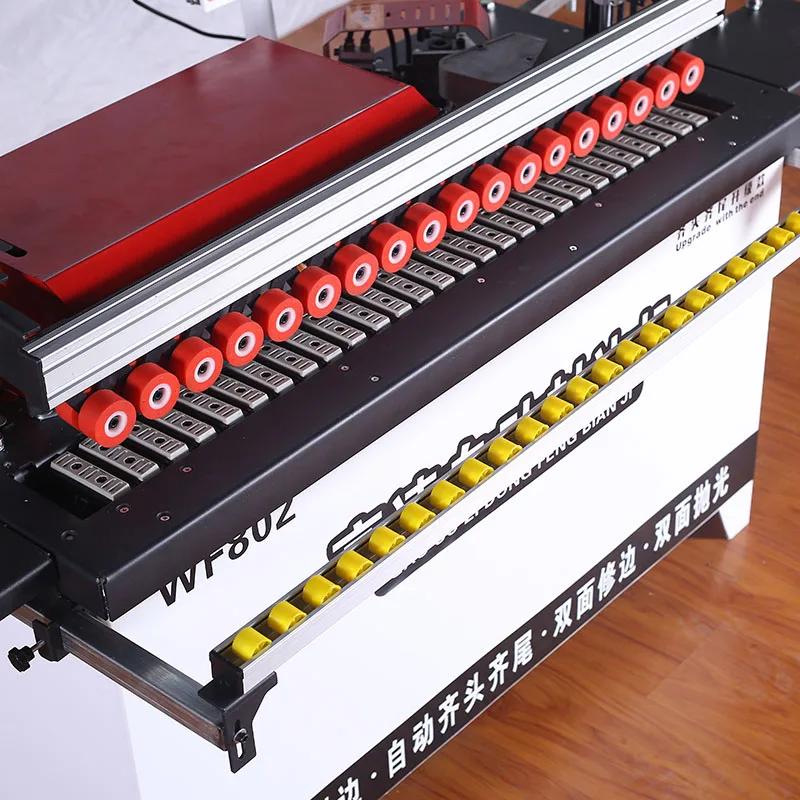

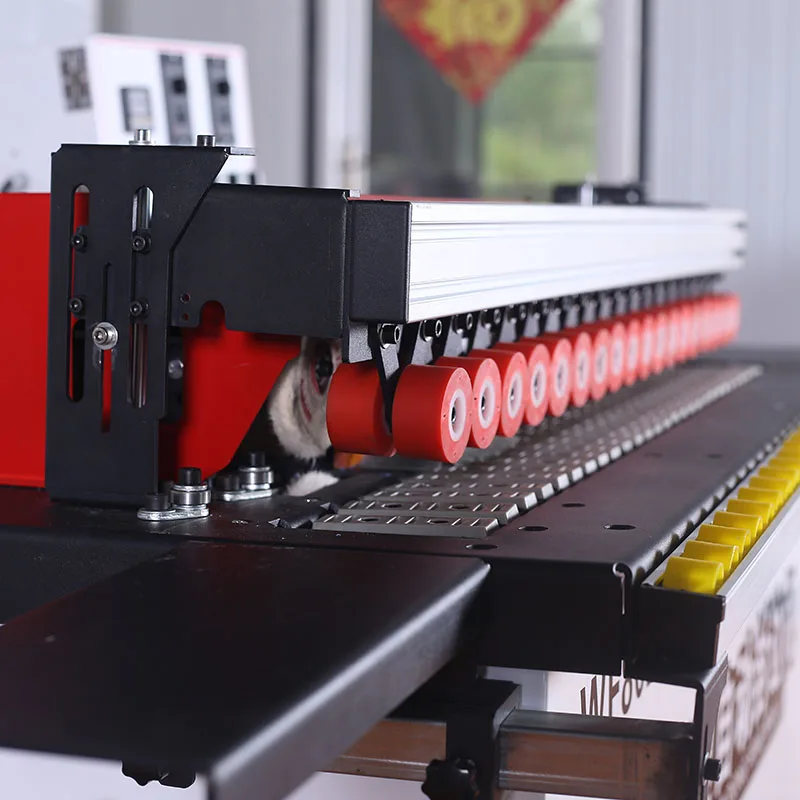

The high-speed automatic edge banding machine has the function of automatic end cutting, with its own vacuum device, clean and tidy. One-piece pressure beam, double rows of pressure wheels, silicone material conveyor belt, the sheet conveying is stable and not easy to scratch. It can seal multiple plates continuously, with convenient operation and high efficiency.
Product Parameters
|
Model |
WF802 |
|
Function |

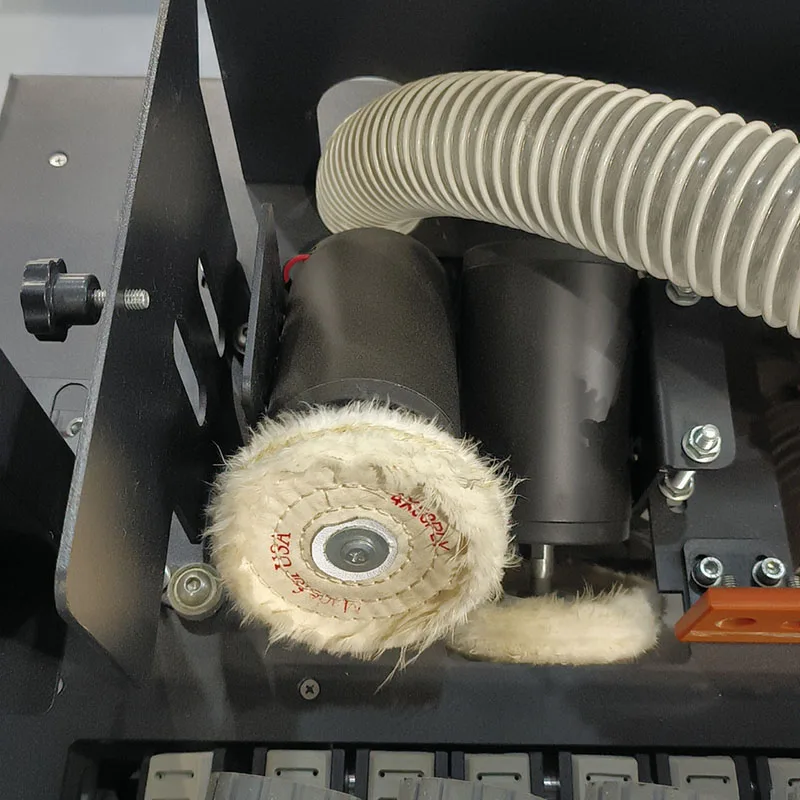

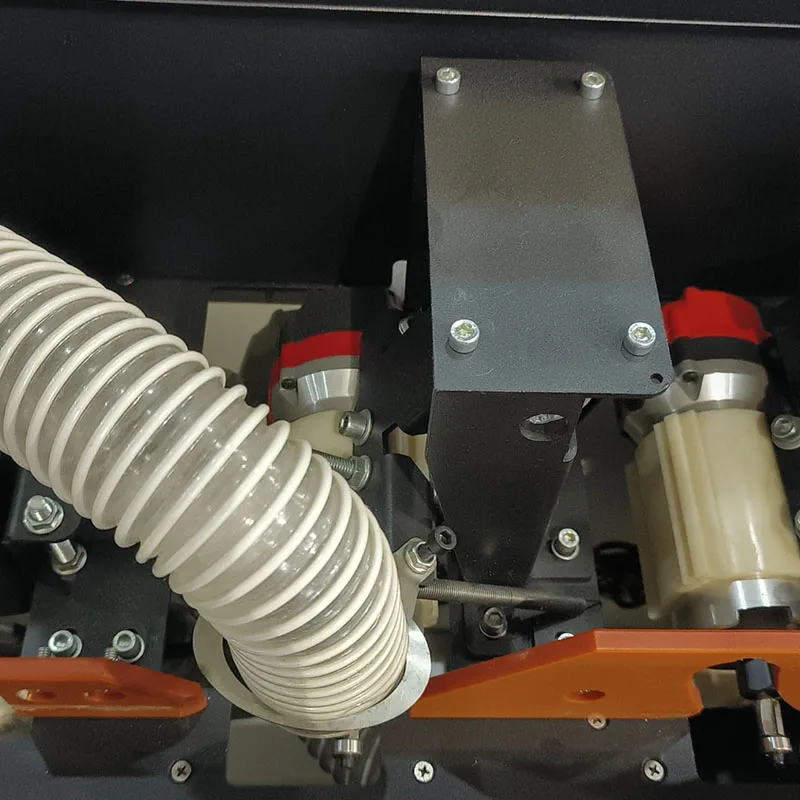

Automatic plate feeding, end cutting, upper and lower polishing, automatic head and tail trimming, comes with dust collector |
|
Edge type |
straight line |
|
Rated voltage |
220v |
|
Strip thickness |
0.5-2.5mm |
|
Sheet thickness |
10-50mm |
|
Trimming power |
800w*2 |
|
Polishing power |
180w*2 |
|
Suction power |
1200w |
|
Rated power |
4kw |
|
Rated air pressure |
0.4-0.6mpa |
|
Feed plate |
0-10m/min |
|
Conveyer belt |
0-10m/min |
|
Glue capacity |
4000ml |
|
Heating power |
1000w (5-10min) |
|
Overall size |
130*65*75cm |
|
Machine weight |
150kg |
