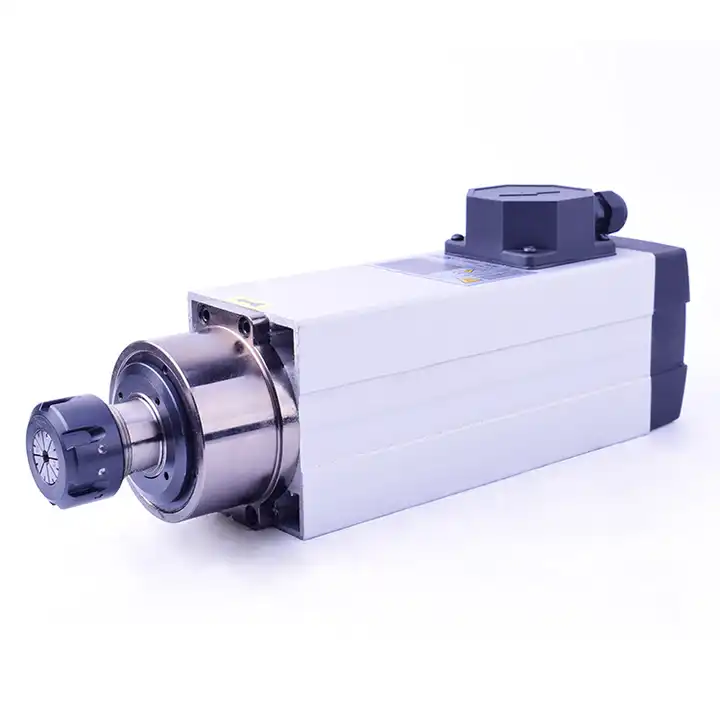

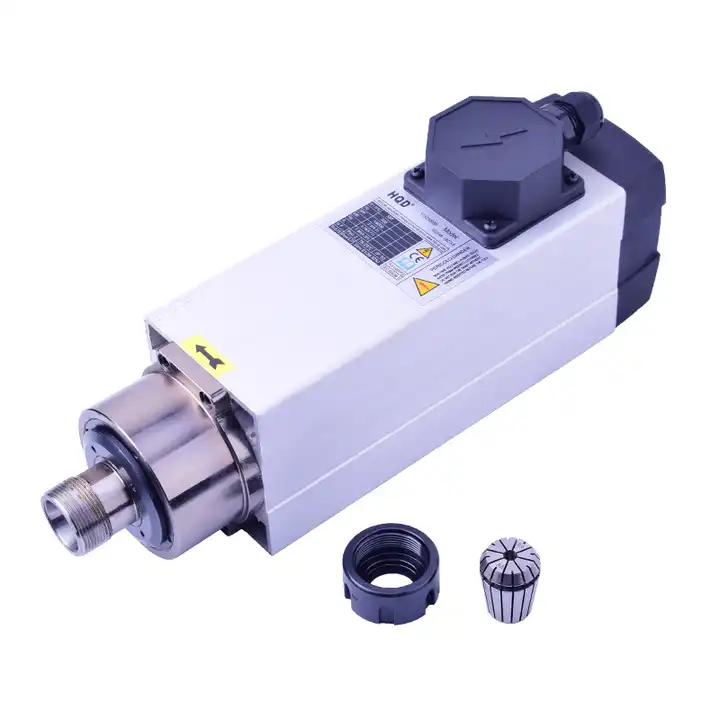

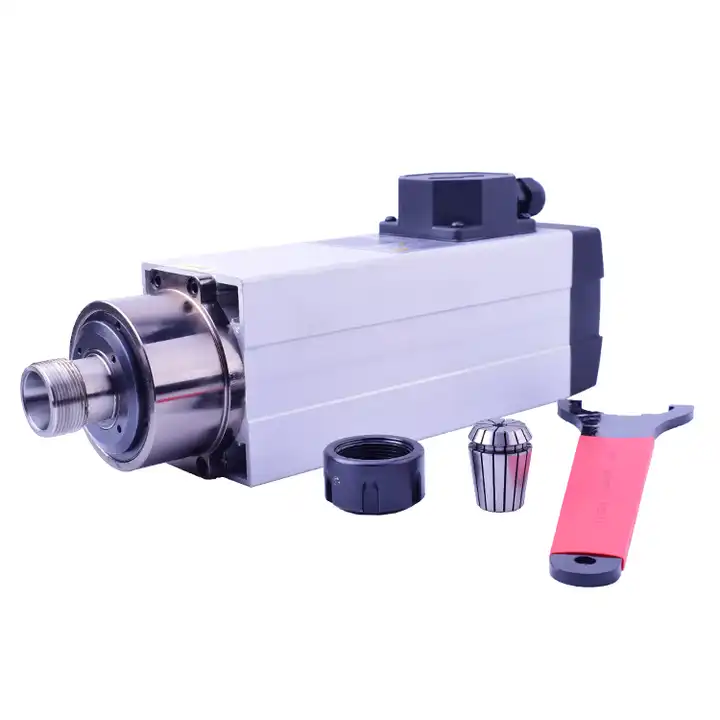

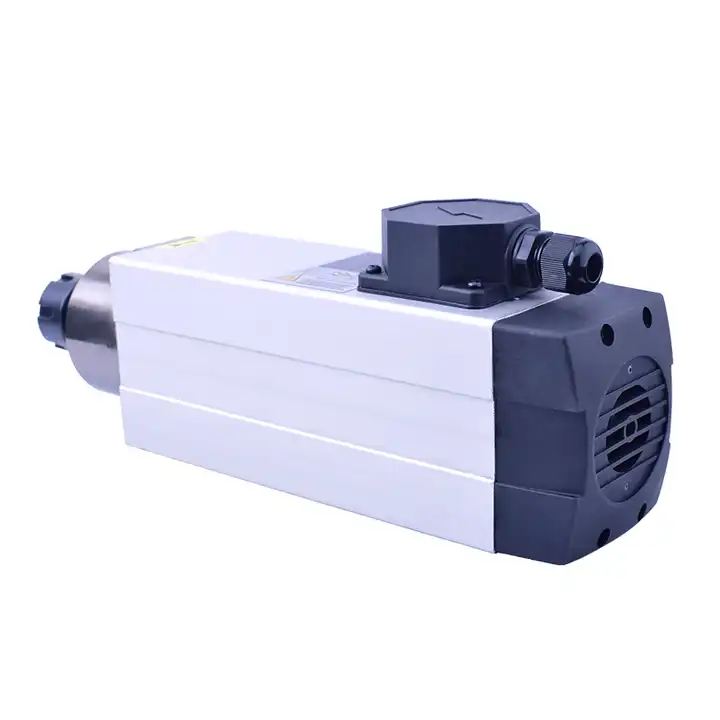

Spindle motor for CNC Router Machine
(1)High-precision bearings, high precision, long life.
(2)Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
(3)Work stable ,low noise,enough fatigue strength, Enough abrasive resistance ,vibration resistance,stable size.
(4)With high grade size ,shape,position precision,and quality of surface .
(5)Wisdom spindle technology stands for quality and effciency,and is well-suited to your grinding,milling,drilling,engraving or special applications.
(2)Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
(3)Work stable ,low noise,enough fatigue strength, Enough abrasive resistance ,vibration resistance,stable size.
(4)With high grade size ,shape,position precision,and quality of surface .
(5)Wisdom spindle technology stands for quality and effciency,and is well-suited to your grinding,milling,drilling,engraving or special applications.
|
Model |
Dimensions |
||||||||
|
L |
L1 |
L2 |
L3 |
B |
B1 |
H |
H1 |
N-M |
|
|
GDF46-18Z/1.5 |
258.5 |
29 |
85 |
90 |
82 |
30 |
129 |
46 |
4-M6 |
|
GDF46-18Z/2.2 |
288.5 |
29 |
85 |
90 |
82 |
30 |
129 |
46 |
4-M6 |
|
GDF46-18Z/3.5 |
328.5 |
29 |
85 |
90 |
82 |
30 |
129 |
46 |
4-M6 |
|
GDF60-18Z/4.5 |
310.5 |
35 |
95.5 |
120 |
103 |
36 |
157 |
60 |
6-M8 |
|
GDF60-18Z/6.0 |
350.5 |
35 |
95.5 |
120 |
103 |
36 |
157 |
60 |
6-M8 |
|
GDF60-18Z/7.5 |
393.5 |
35 |
95.5 |
120 |
103 |
36 |
157 |
60 |
6-M8 |
|
Model |
Speed(RPM) |
Power(KW) |
Voltage(V) |
Electricity(A) |
Frequency(HZ) |
Connect |
Cooling |
|
GDF46-18Z/1.5 |
18000 |
1.5 |
220V |
5.6 |
300 |
ER20 |
Air |
|
GDF46-18Z/2.2 |
18000 |
2.2 |
220V |
7.8 |
300 |
ER20 |
Air |
|
GDF46-18Z/3.5 |
18000 |
3.5 |
220V/380V |
7.0 |
300 |
ER25 |
Air |
|
GDF60-18Z/4.5 |
18000 |
4.5 |
380V |
9.0 |
300 |
ER32 |
Air |
|
GDF60-18Z/6.0 |
18000 |
6.0 |
380V |
12.0 |
300 |
ER32 |
Air |
|
GDF60-18Z/7.5 |
18000 |
7.5 |
380V |
15.0 |
300 |
ER32 |
Air |
