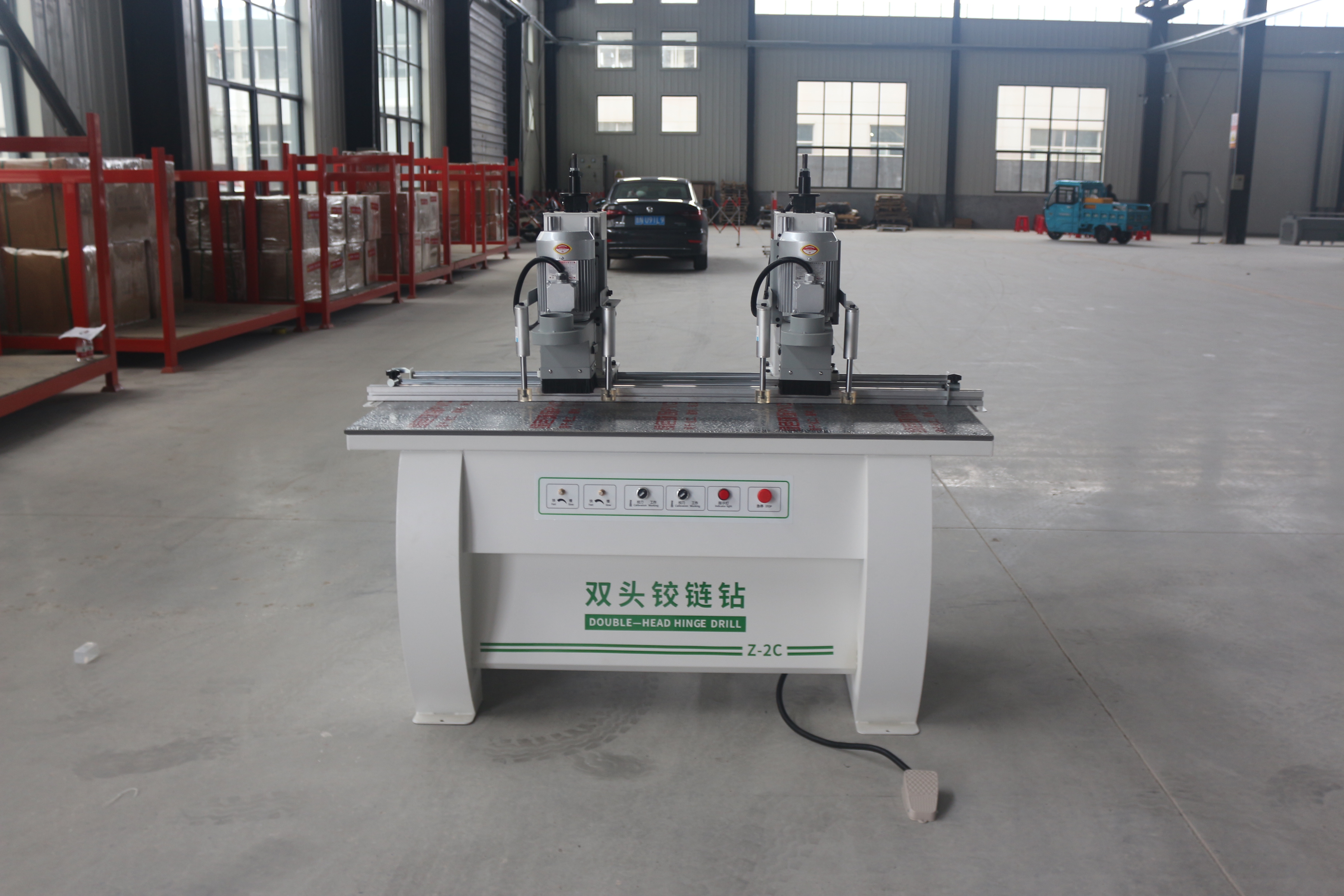

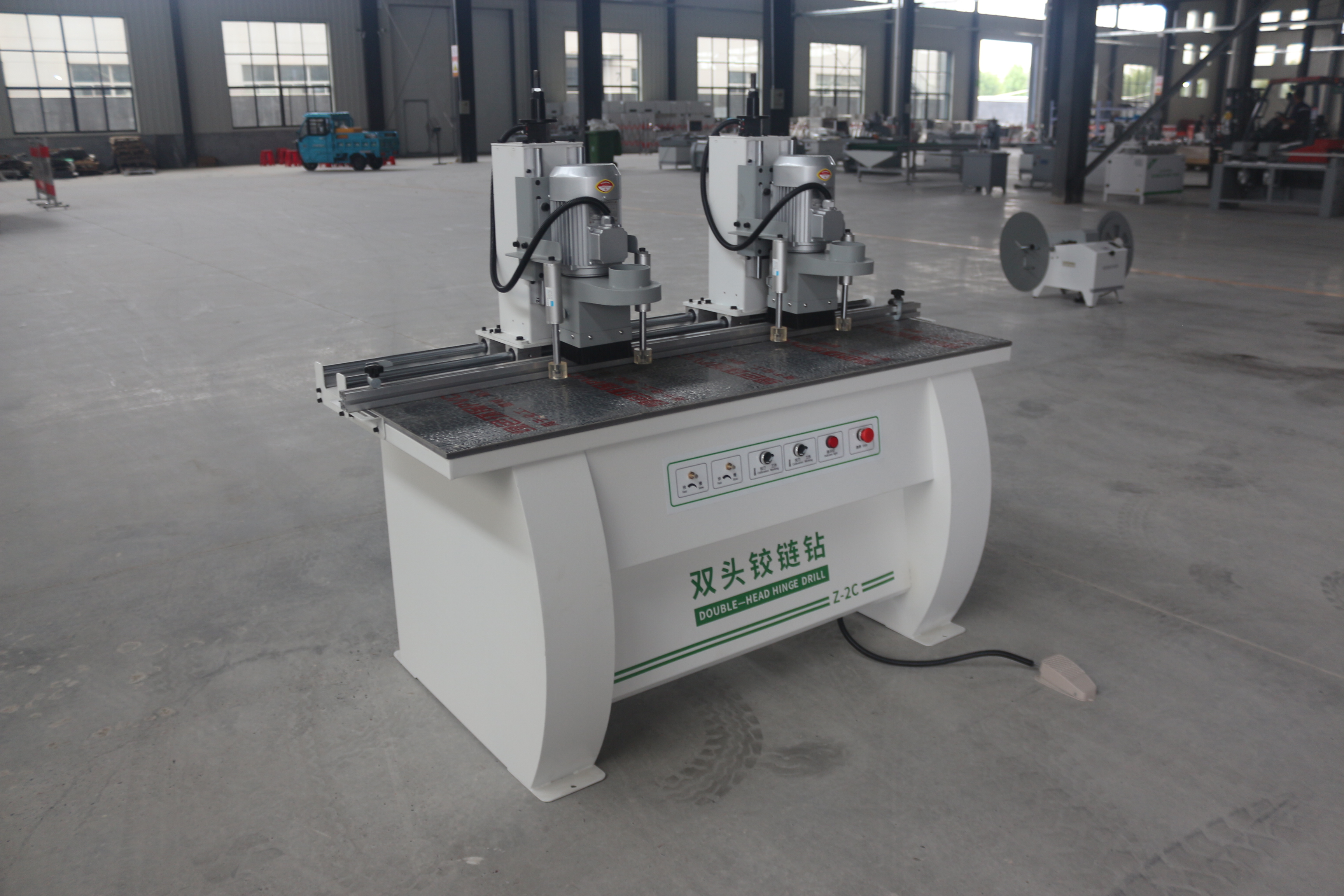

Wood door hinge hole drilling machine double-head hinge drilling machine

Mode

Z-1C

Z-2C

Z-4C

Maximum processing length

1000mm

1500mm

2300mm

Drill chuck aperture

3*1

3*2

3*4

The motor power

1.1kw

1.1kw*2

1.1kw*4

Overall dimensions

1000*650*1550mm

1700*800*1550mm

2550*800*1550mm

Weight

100kg

550kg

800kg

Maximum drilling diameter

φ35mm

Maximum drilling depth

50mm

Spindle speed

2840r/min

Air pressure

0.6-0.8Mpa

Voltage

380v

Application

MDF, partical/abs/artficial board

Produce name

Woodworking hinge drill, Cabinet door hinge drill
