Aluminum/Plywood/MDF Panel PVC Film Sticking Laminating Machine

Contact

Product Details

Product Description

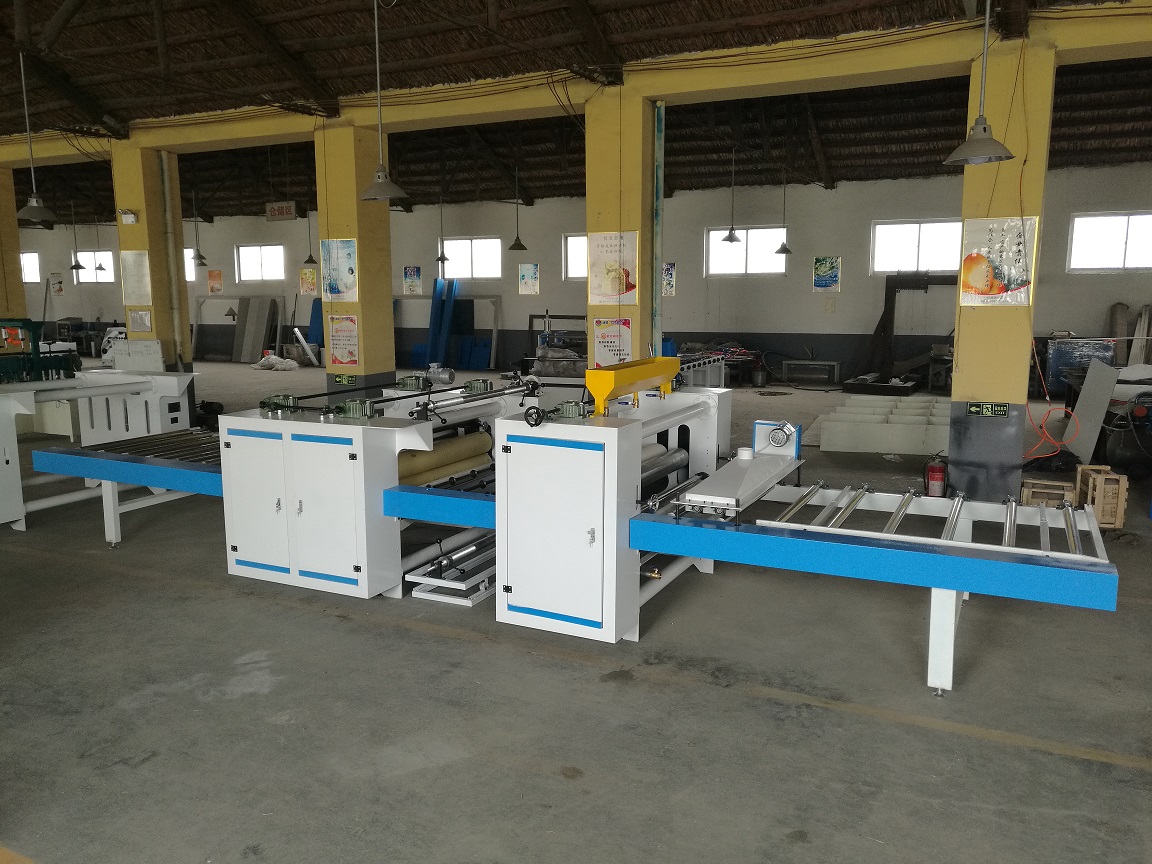

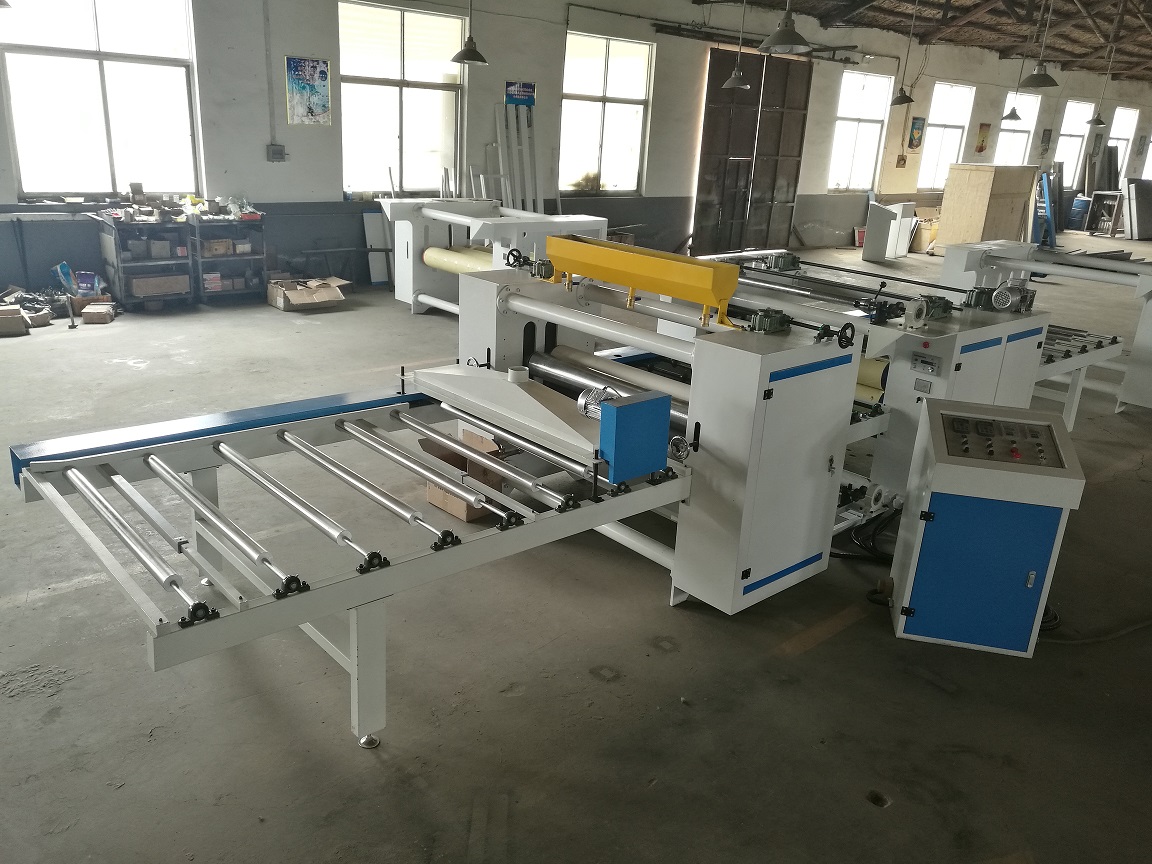

Plywood/MDF panel PVC film sticking laminating machine

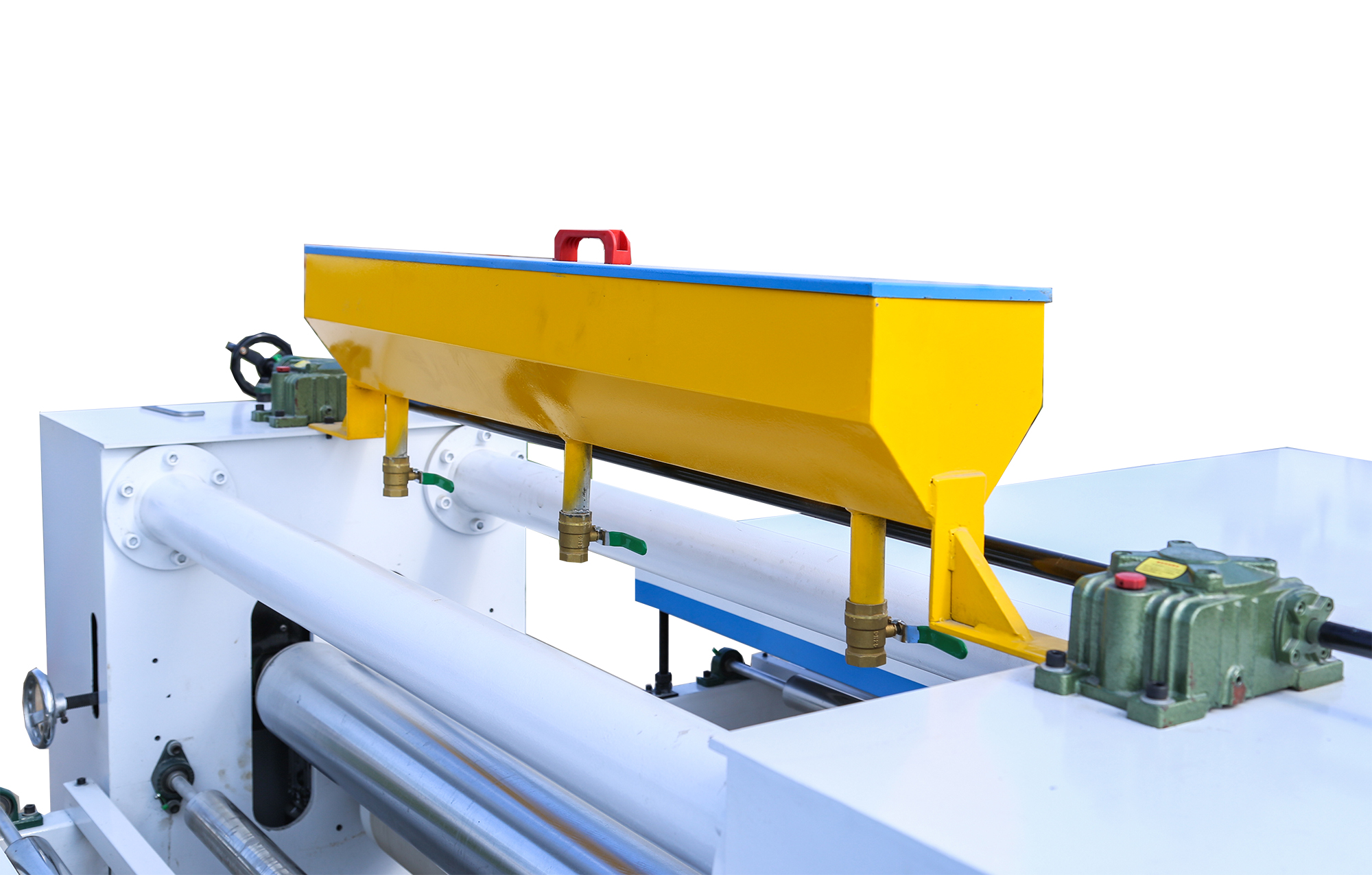

This type pvc film laminating machine is the best choice for laminate decorative material (PVC,PE, wood grain paper etc.)on the surface of the flat board(MDF board,density board, particle board, aluminum panel,steel panel,PVC panel etc.It equipped with dust-cleaning part, glue coating machine,glue heating part, cold and hot pressure part,can finish dust-cleaning, glue coating, hot & cold pressure, material sticking.The final product has a flat surface without wrinkles

Technical parameters
aluminum/Plywood/MDF panel PVC film sticking laminating machine

Item TZ1300-A PVC film laminating machine
Pressing roller control Automatic(when change thickness of the panel,the pressing roller can lifting automatic)
Main body of the machine Made by 16mm steel plate
Voltage 380V/50HZ
Rated power 18KW
Glue coating roller φ190x1350mm( silicone )
Heating steel Pressing roller          φ190x1350mmx3PCS
Rubber pressing roller φ190x1350mmx2PCS
Max processing thickness 50mm
Max.work width 1350mm
working speed 1-15m/min
Overall dimensions 9600*2300*1600mm
Machine weight 2800kgs
