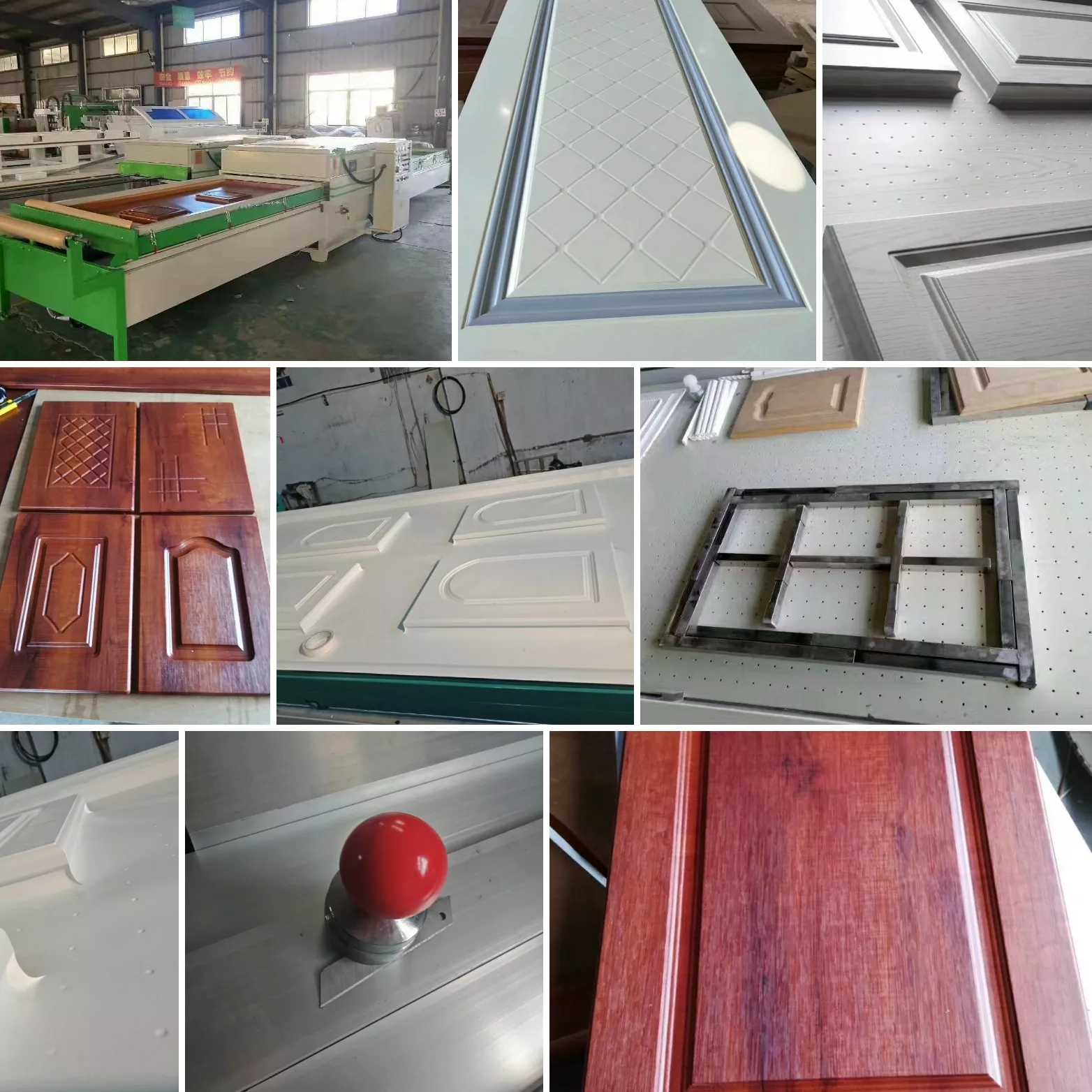

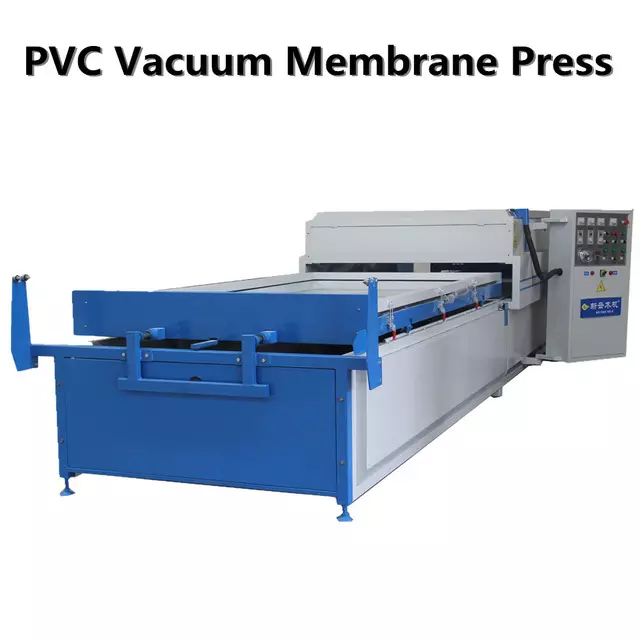

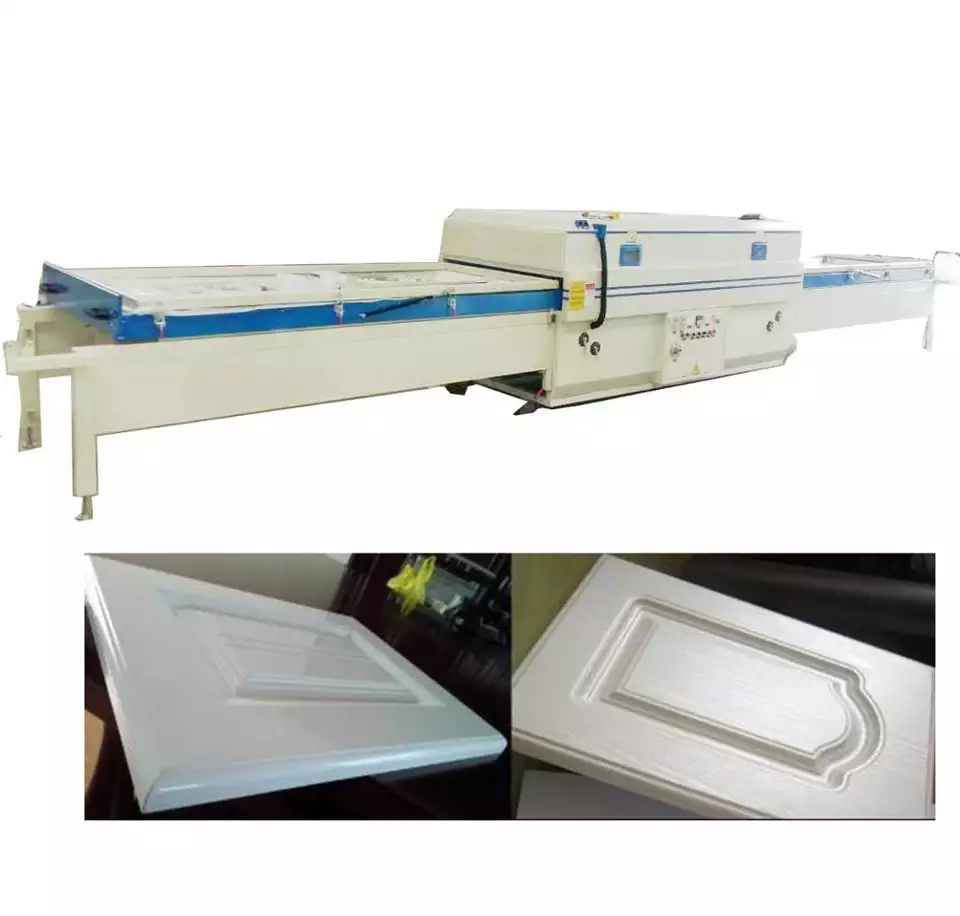

Automatic PVC vacuum laminating press machine for woodworking

Product name

Automatic PVC vacuum laminating press machine for woodworking

Model

FM2500-A

Dimension

9800*2200*1800mm

Dimension of working table

2500*1300/1100mm (inside diameter)

Max. working height

60mm(with pad)

Rated working pressure

negative pressure>=-0.1mpa

Installed capacity

45kw

Actual power consumption

8-9kw/h

Working form

One-key start+automatic entry and exit+regular heating+automatic suction and cover

Control components

Schneider control switch

Vacuum pump

XD-100 vacuum pump+three-capacity double gas tank

Transmission system

Rack and pinion drive+motor reducer+linear guide+frequency converter

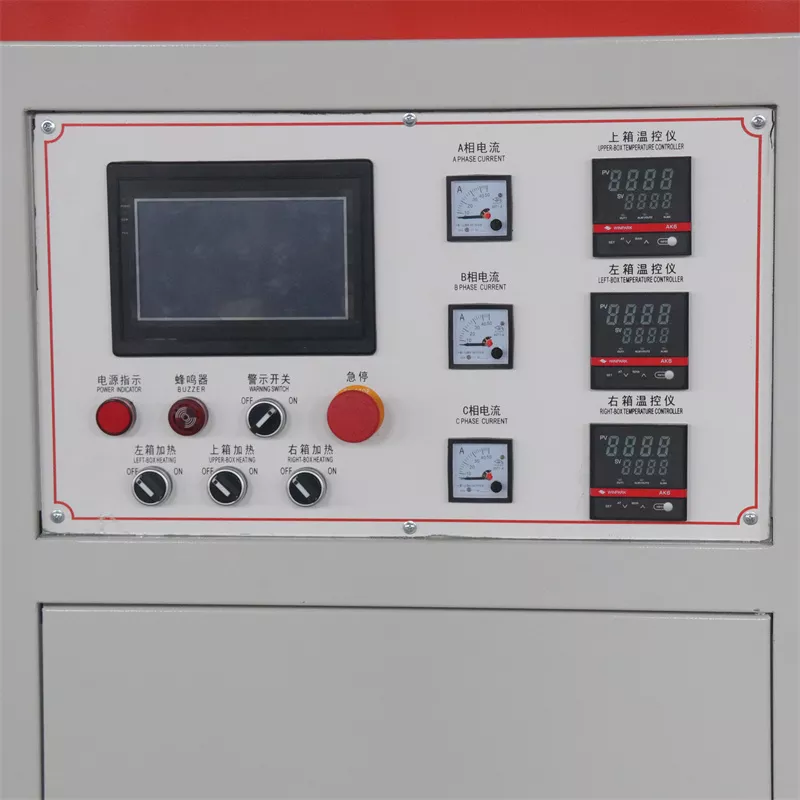

Control system

PLC storage data memory function

Cooling

introduced with cooling fan

Weight

3000kg
