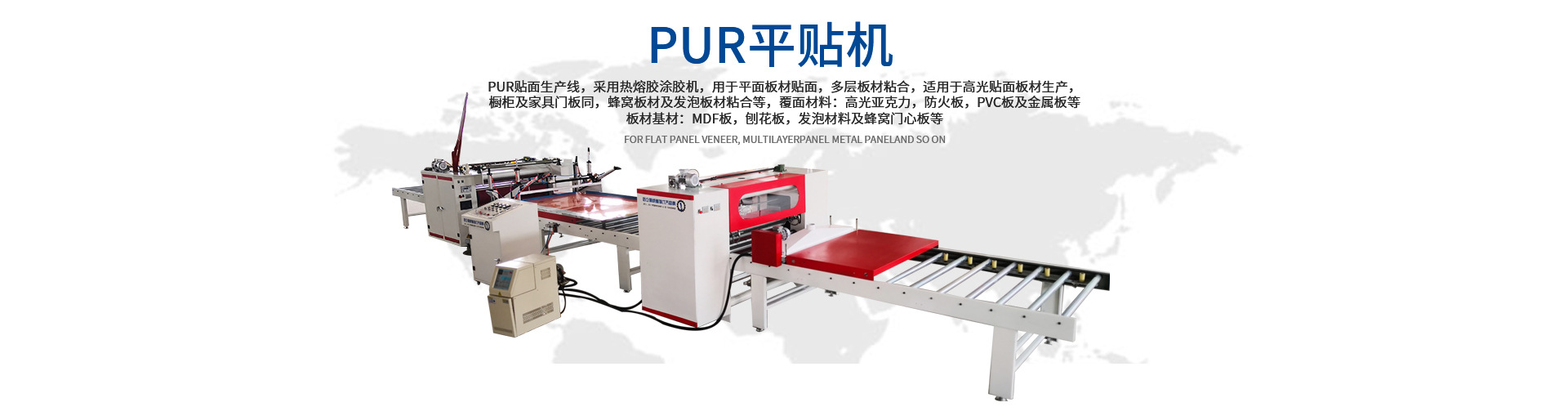

PUR hot melt glue Flat Laminating Production Line Machines

Contact

Product Details

Product Description

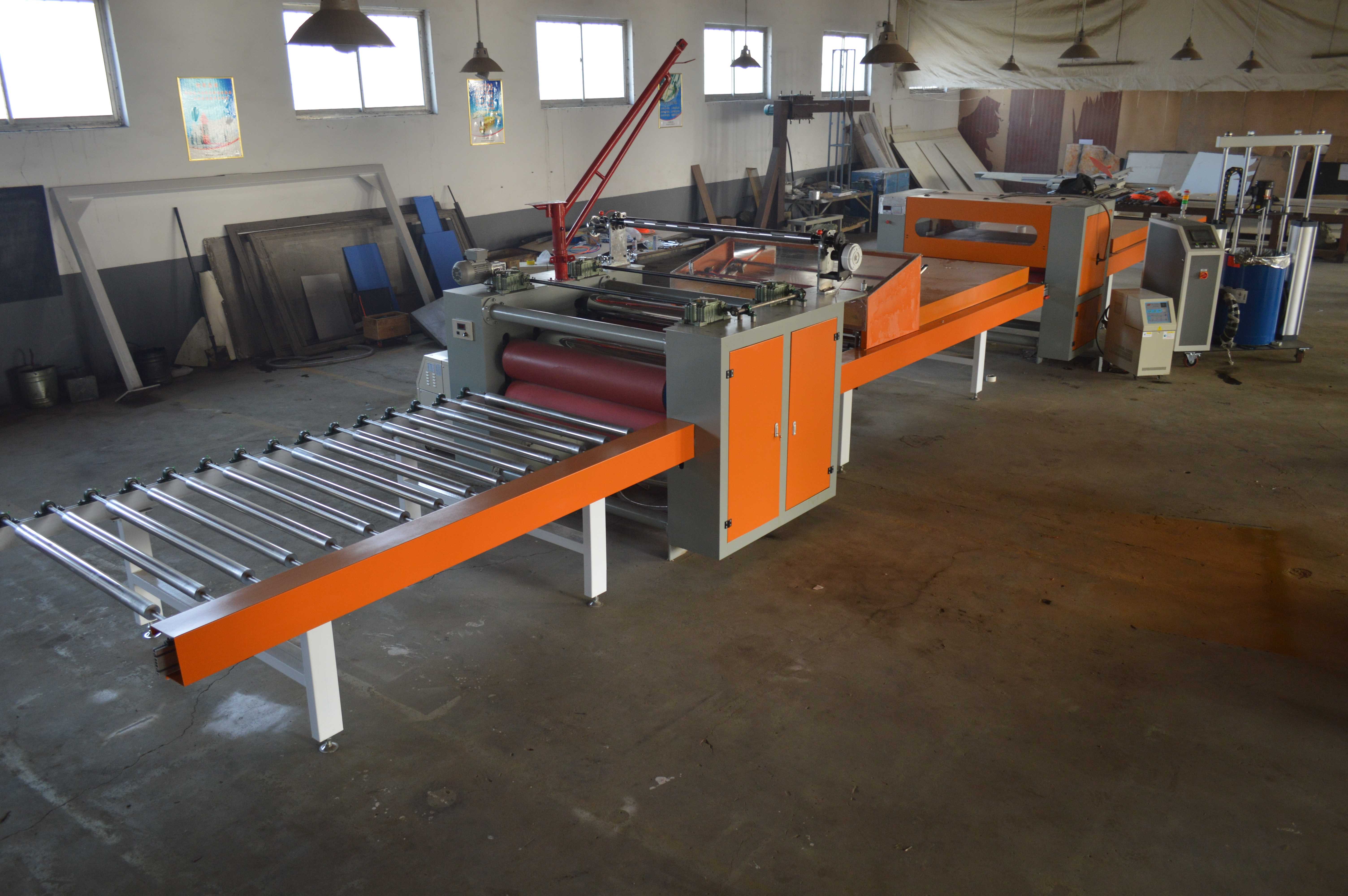

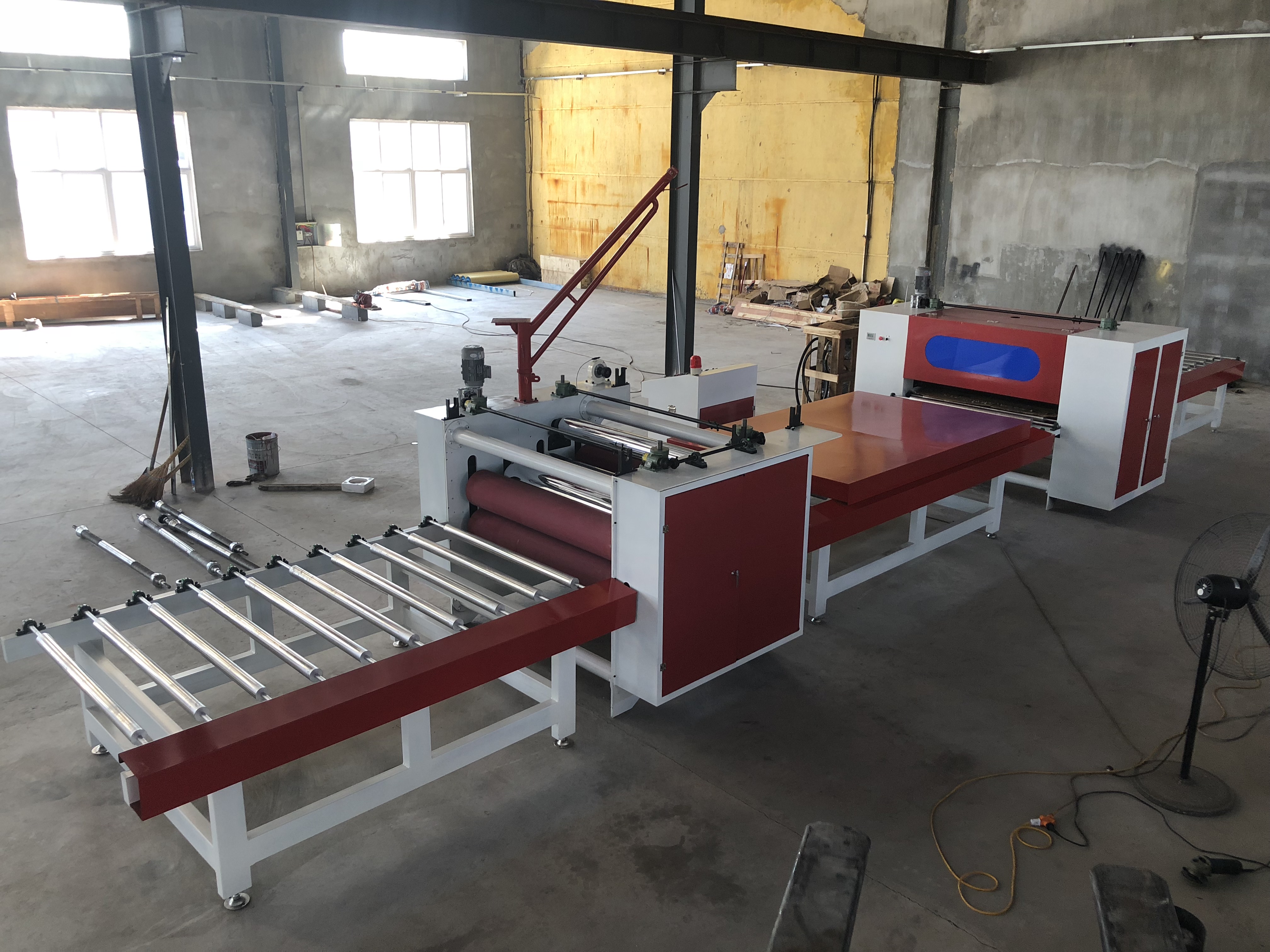

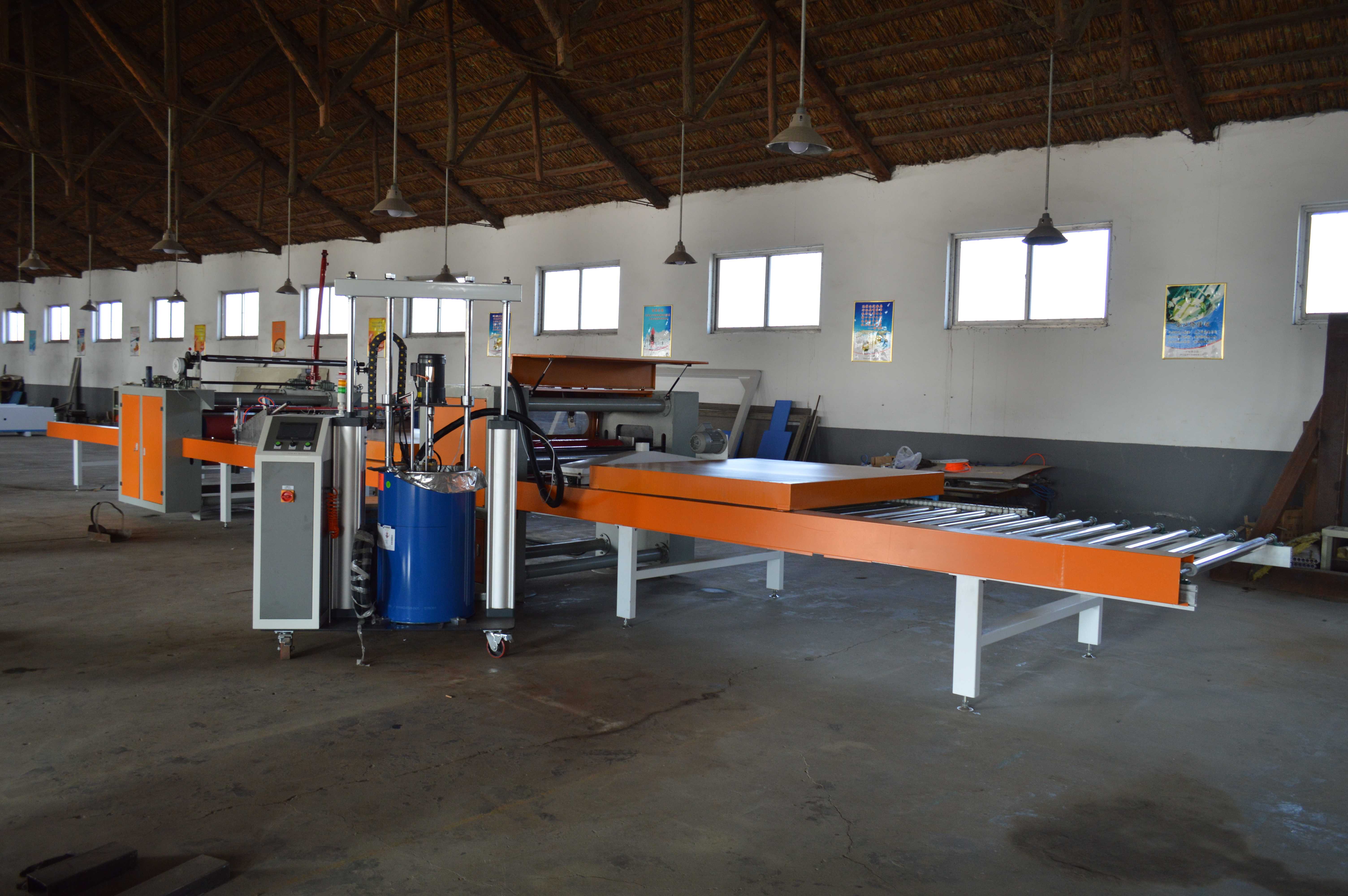

woodworking PUR hot melt glue laminating machine for high gloss,This production line adopt the special precise hotmelt glue system .This machine is specialize in sticking on panel and multiplayer board, it is suitable for produce high-glossy , panel ,cabinet ,furniture door, honeycomb board and foam board sticking .etc .

1.Laminate material :High-gloss pvc , acrylic , HPL, PVC board and metal board ,PE, PET ,PVC, veneer , paper .ect.
2.Based panel material :MDF board ,chipboard, plywood, gypsum board, HPL, foam board ,aluminum panel ,steel panel.
3.Glue: PUR hotmelt glue .
4.User :Furniture ,cabinet ,panel door producer ,new building material factory ,high-grade decoration board factory

Technical parameters

woodworking PUR hot melt glue laminating machine for high gloss

Panel preheating One heating channel

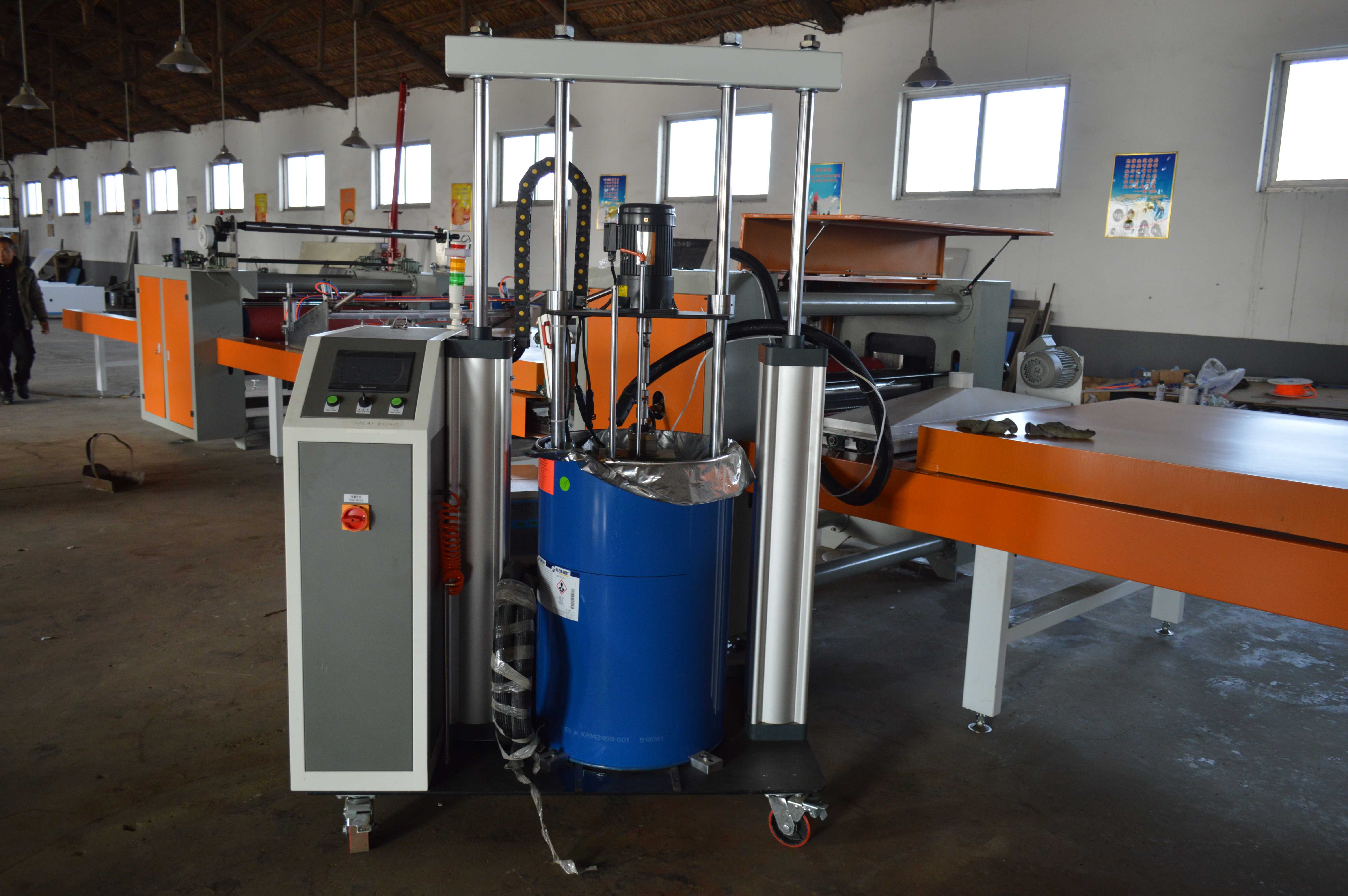

PUR glue machine 55 gallans
silica gel glue coating roller Φ240*1pc
steel glue roller Φ190*1pc
Ceramic glue roller Φ240*1pc
steel glue roller heating adopt a 15 kw oil heating system
Glue heating after coating ONE HEATING BOX
shaft for film Two
Loading height of the hoist 350kgs
silica gel pressing roller Φ240mm*1pc
Hot steel pressing roller Φ240mm*1pc
Drive motor Power 6KW
PUR glue melt machine power                                                       20KW
Heating power 24KW
Dust clean power 0.37KW
Total power 50kw
Max.glue coating width 1300mm
Max.working width 1300mm
Processing thickness 3-50mm
Frequency converter HZ
Electric parts CHINT
working speed 2-18m/min
Voltage 380V/50Hz
Machine weight 5000kg
Overall size 13000*2300*1700mm
