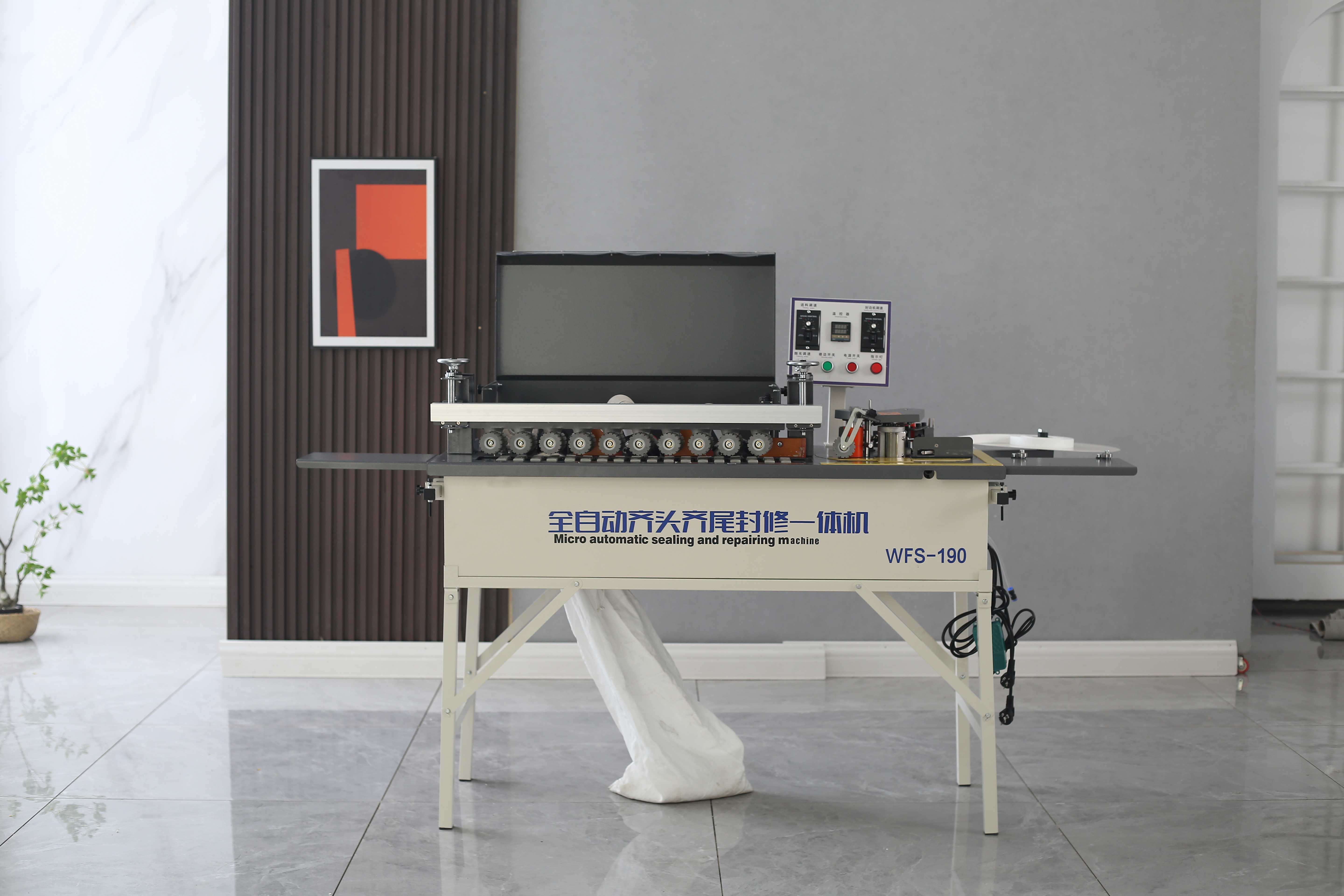

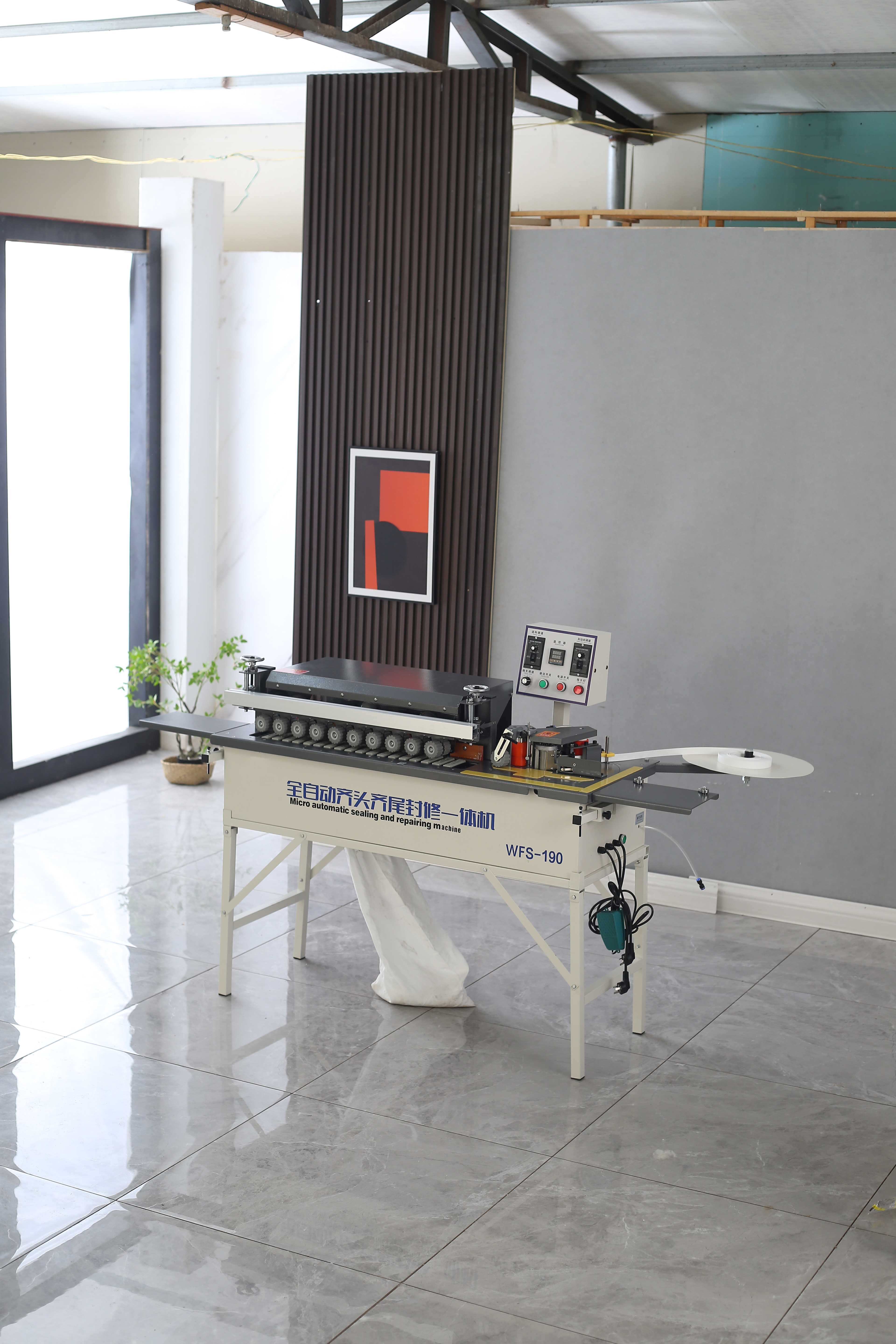

Speed-adjustable portable small circular board edge banding machine
Function：Automatic plate feeding，Automatically break the belt，Double-sided gluing

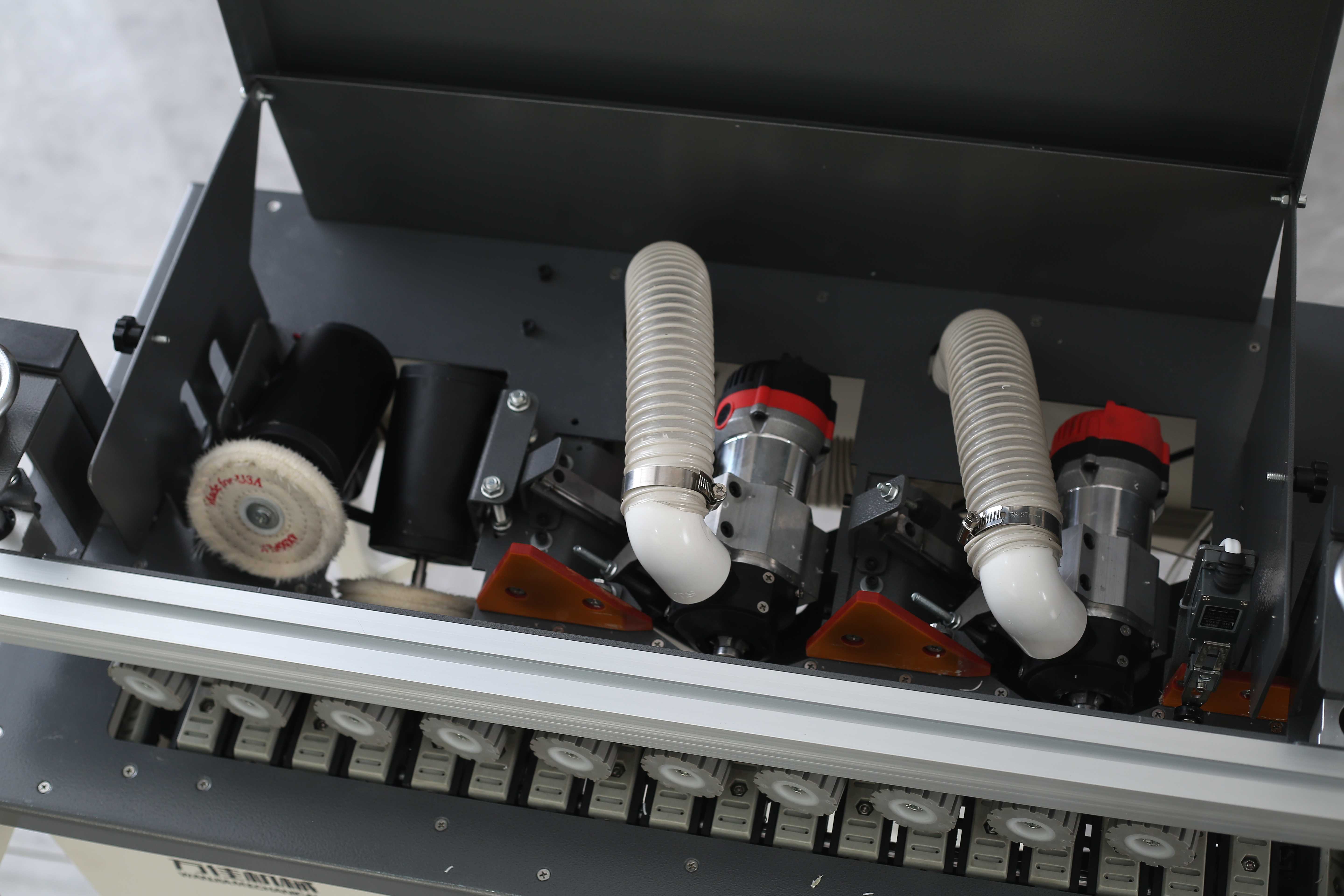

Upper and lower trimming and polishing，Curved and straight edge banding
Large diameter surrounding vacuum
Product Paramenters
|
Model |
WFS190 |
|
Function |
Automatic plate feeding， Automatically break the belt， Double-sided gluing Upper and lower trimming and polishing， Curved and straight edge banding Large diameter surrounding vacuum |
|
Edge type |
Both curved and straight lines |
|
Voltage |
220v50hz |
|
Rated power |
4kw |
|
Rated air pressure |
0.4-0.6mpa |
|
Suction |
1200w |
|
Belt power |
25w |
|
Transmission power |
120w |
|
Heating power |
800w |
|
Polishing power |
180w*2 |
|
Trimming power |
800w*2 |
|
Conveyer belt |
0-14m/min |
|
Feed plate |
0-14m/min |
|
Sheet thickness |
10-50mm |
|
Strip thickness |
0.5-2.5mm |
|
Glue capacity |
1000ml |
|
Overall size |
1900*560*1300mm |
|
Packing size |
138*58*64cm |
|
Weight |
120kg |
