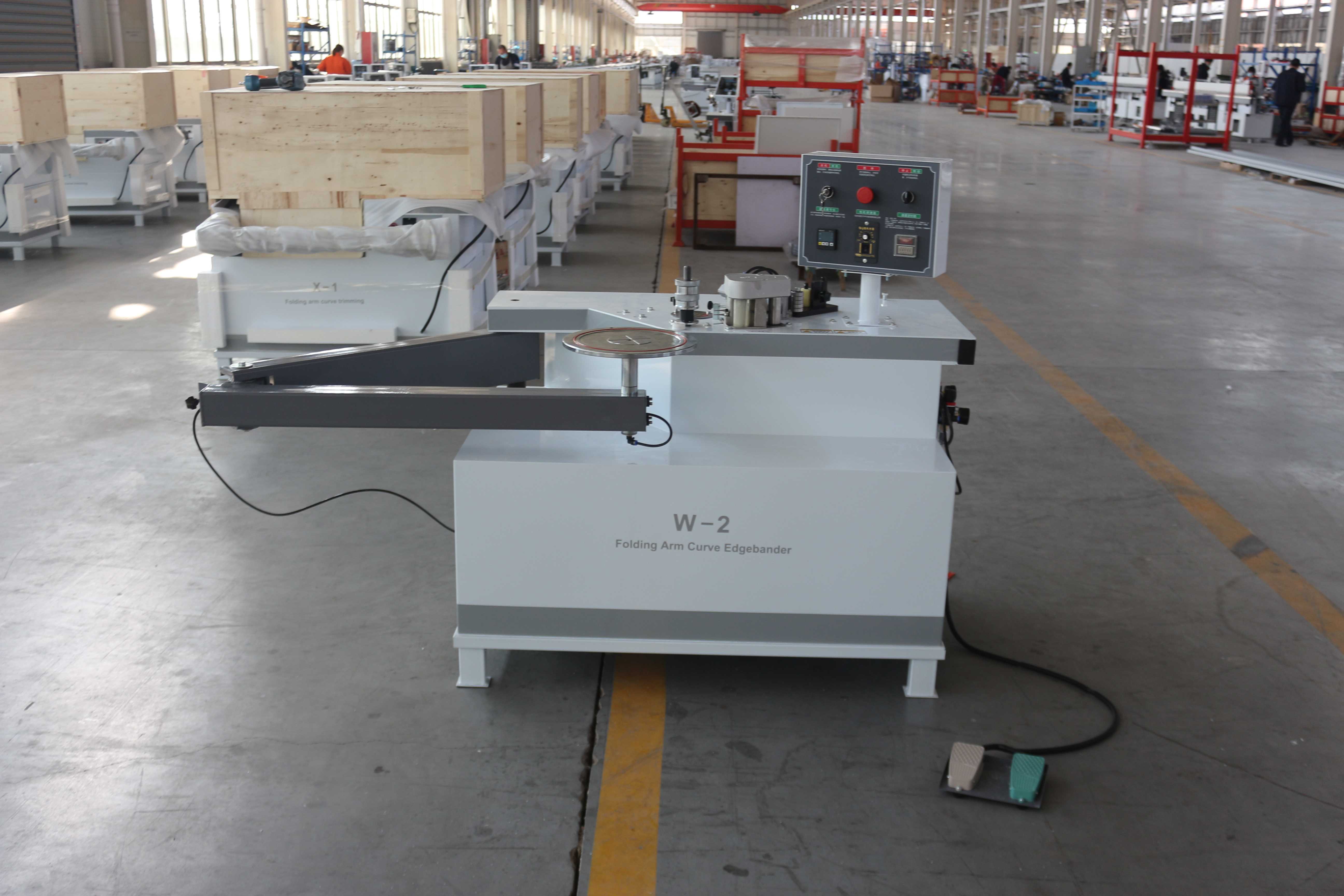

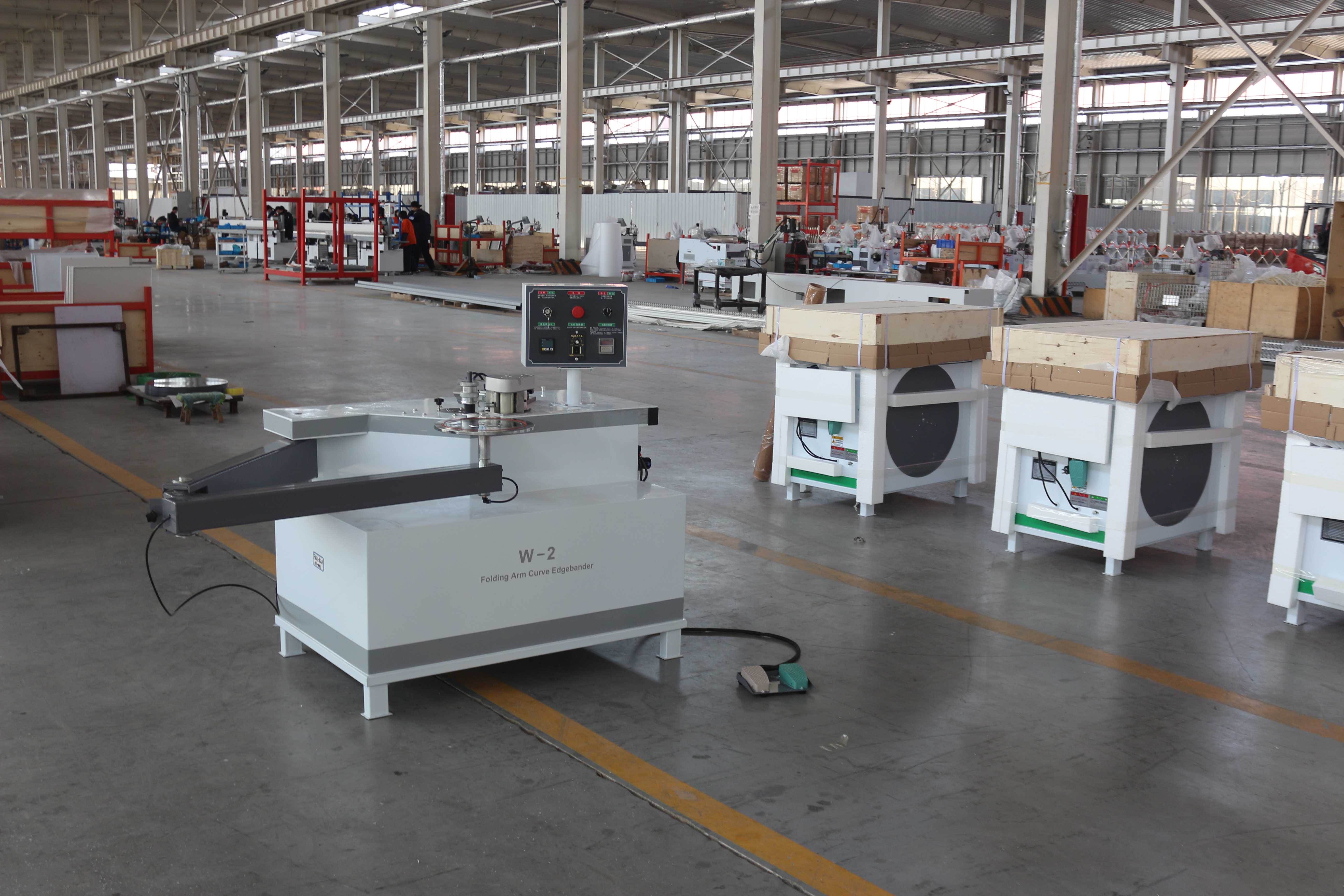

W2 edge banding machine automatic for wood furniture

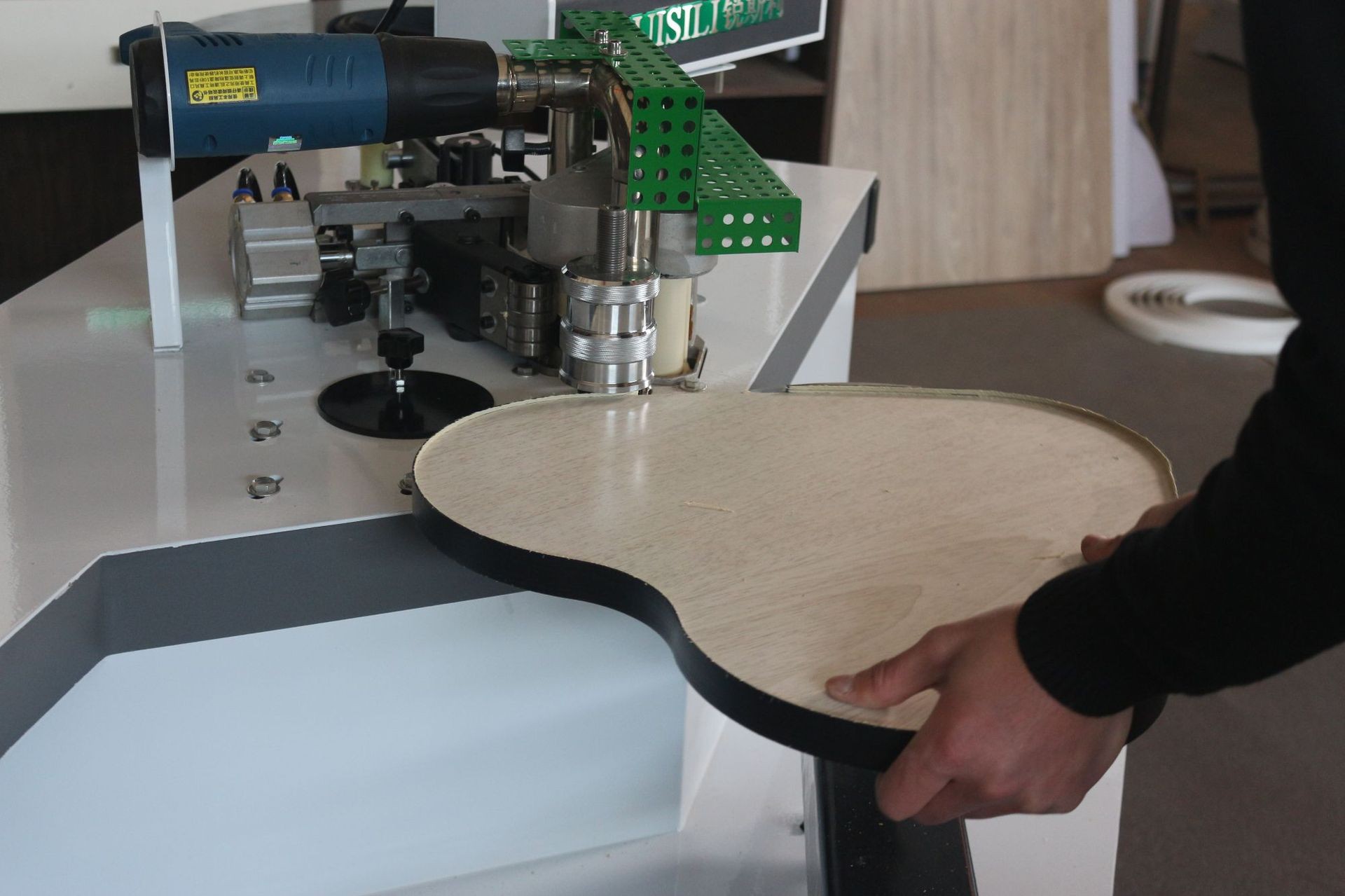

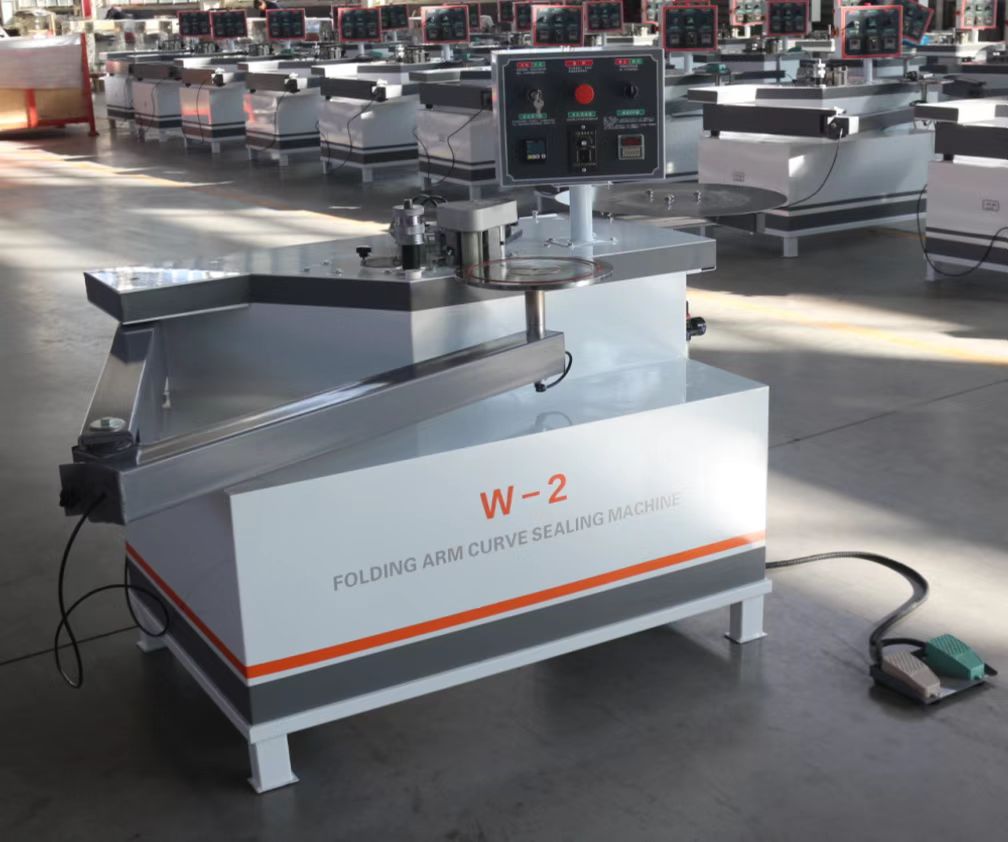

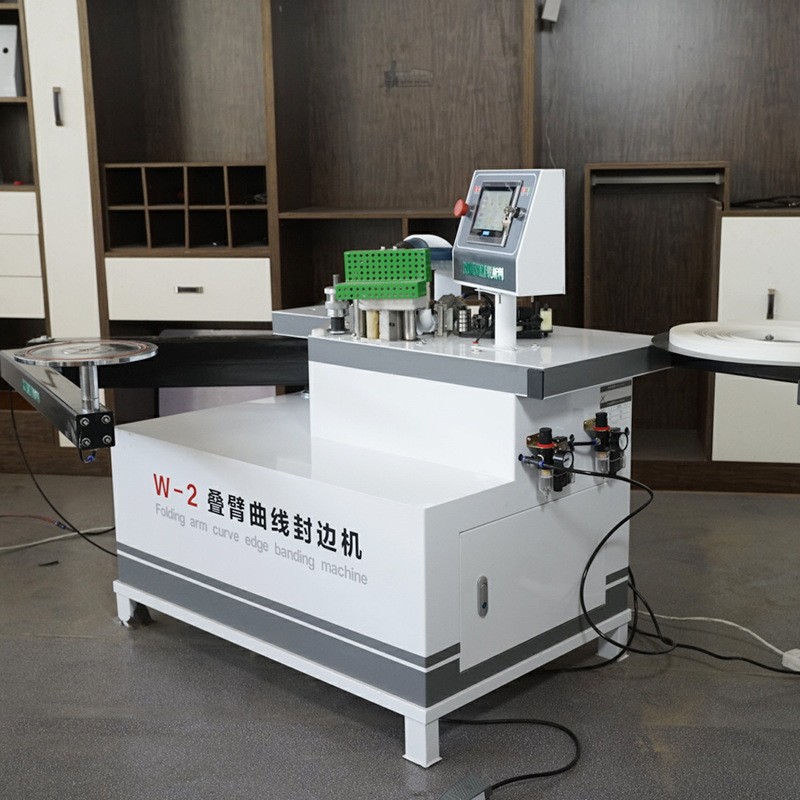

Folding Arm Curve Edge Banding Machine Features :
W1: conventional thickness and shape applicable , round 1.6m , square 1.5*1.2m , L-shaped 1.2*1.2m , maximum load capacity 40kg
W2: conventional thickness and shape applicable , round 2.4 meters , square 1.2*2.3 meters , L-shaped 1.2*1.6 meters ,the maximum load of 50 kg
W3 : new automatic lue cleaning , hot air set , increase the auxiliary pressure wheel function , the regular thickness and shape for the round 2.4m square 1.2*2.4m , L-shaped 1.2*1.6m or so , the maximum load 50 kg
|
Model |
W1 |
W2 |
W3 |
|
Board size |
round 1.6m, square 1.5*1.2m, L-shaped 1.2*1.2m Maximum load capacity 40kg |
round 2.4m, square 1.2*2.3m, L-shaped 1.2*1.6m Maximum load capacity 50kg |
Round 2.4m Square 1.2*2.4m, L-shaped 1.2*1.6m Maximum load capacity 50kg |
|
Diameter ofsuction cup |
200 mm |
300 mm |
300 mm |
|
Auxiliarypressure roller |
— |
— |
√ |
|
Automatic cleaning |
— |
— |
√ |
|
Hot air device |
— |
— |
√ |
|
Total power |
1400w |
1400w |
3400w |
|
Edge banding speed |
0-18cm/s |
0-18cm/s |
0-18cm/s |
|
Glue pot capacity |
1200ml |
1200ml |
1200ml |
|
Length ofstacking arm |
1320 (with 200mm suction cup) |
1860 (with 300mm suction cup) |
1860 (with 300mm suction cup) |
|
Net weight |
88KG |
152KG |
157KG |
|
Machine size |
1420*1400*1210mm |
1960*1700*1220mm |
1960*1700*1250mm |
