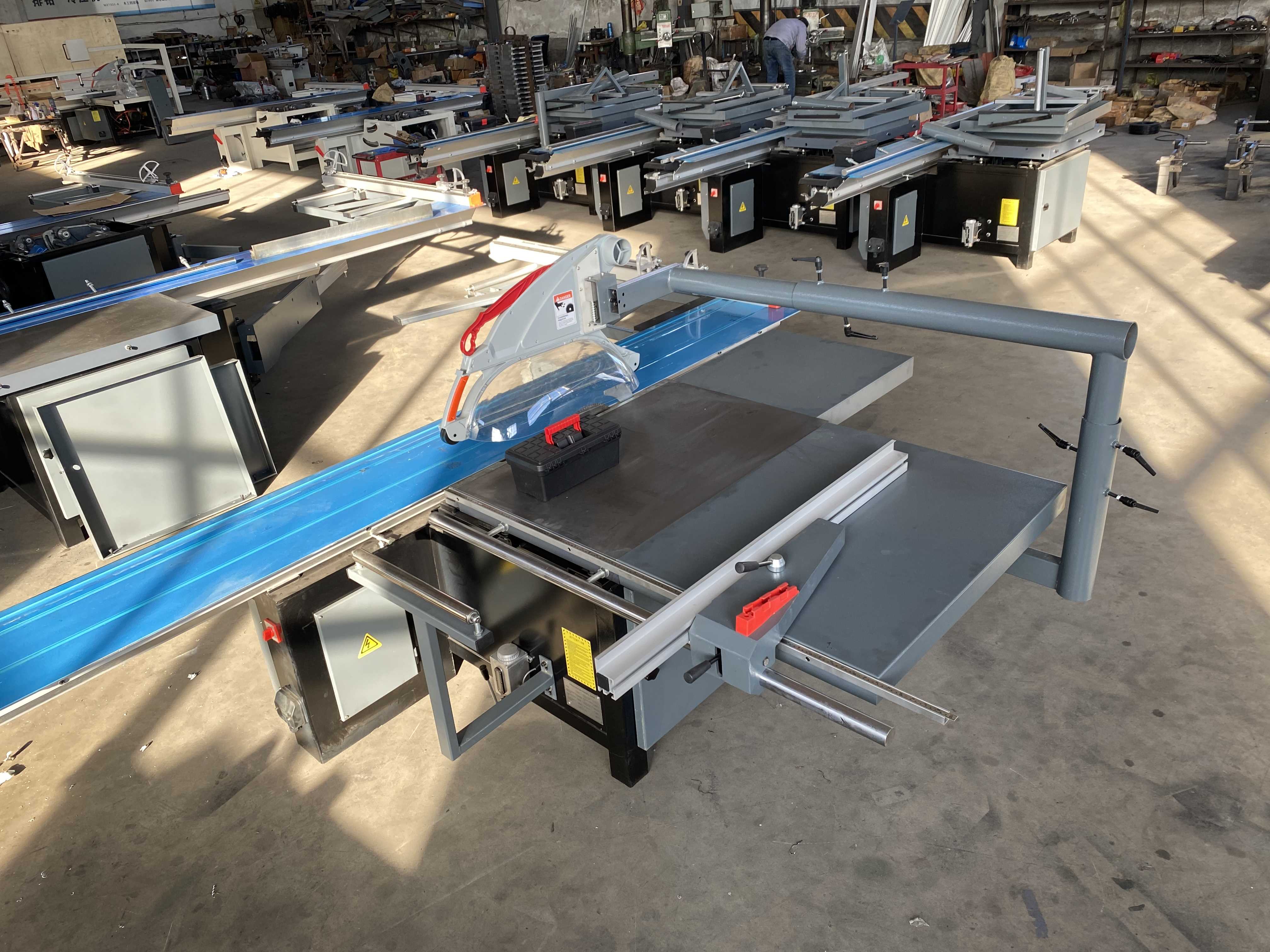

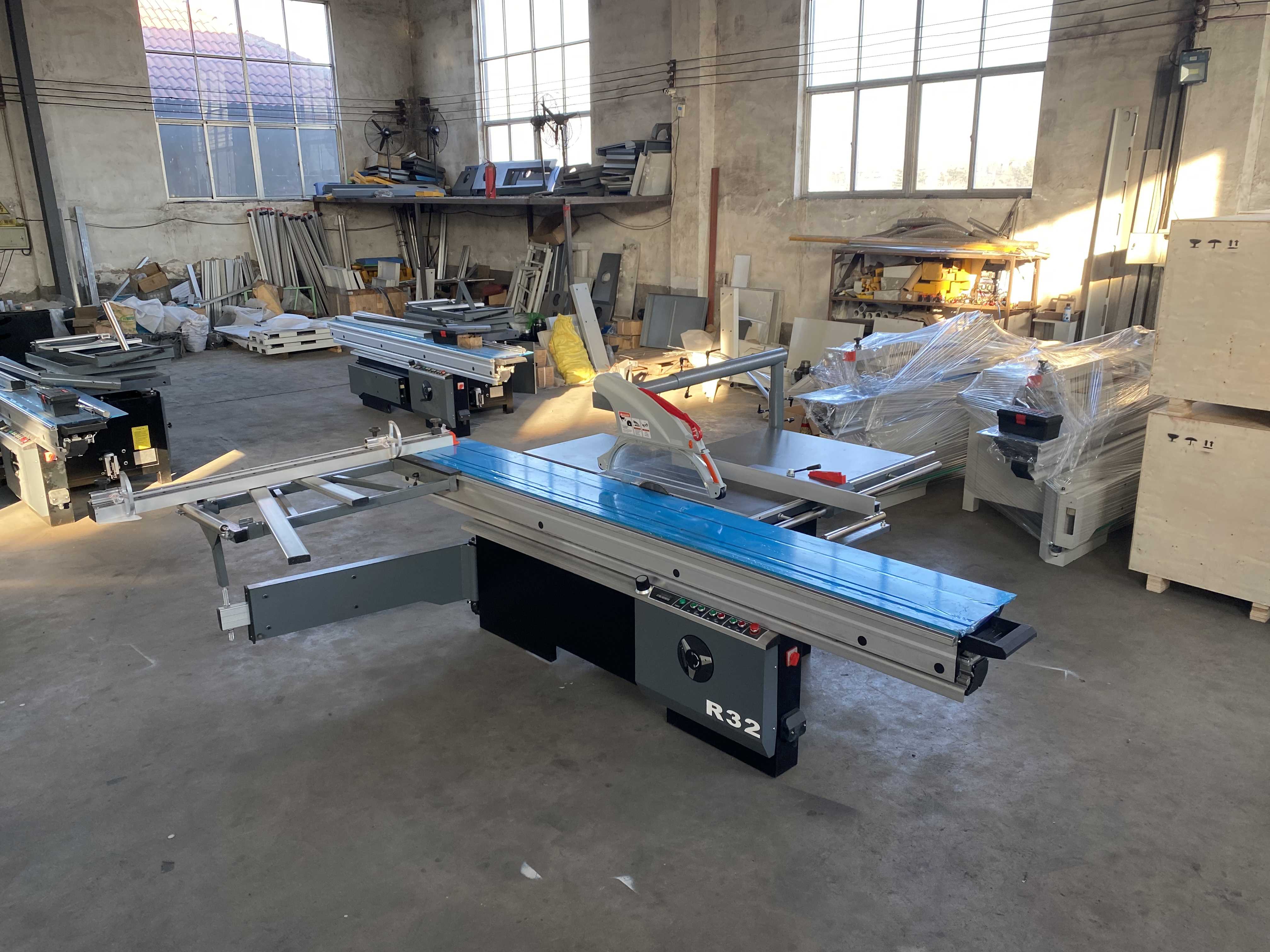

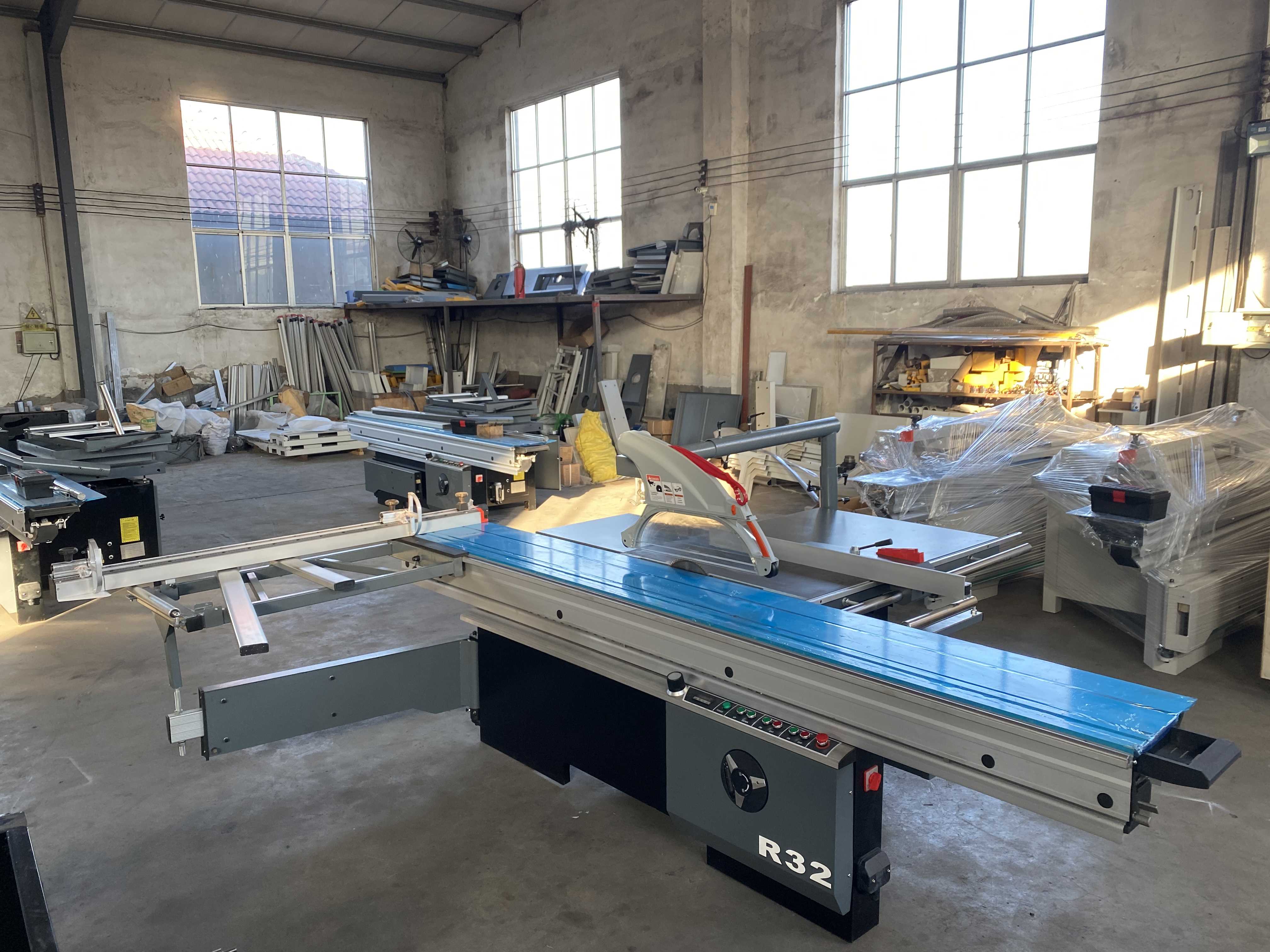

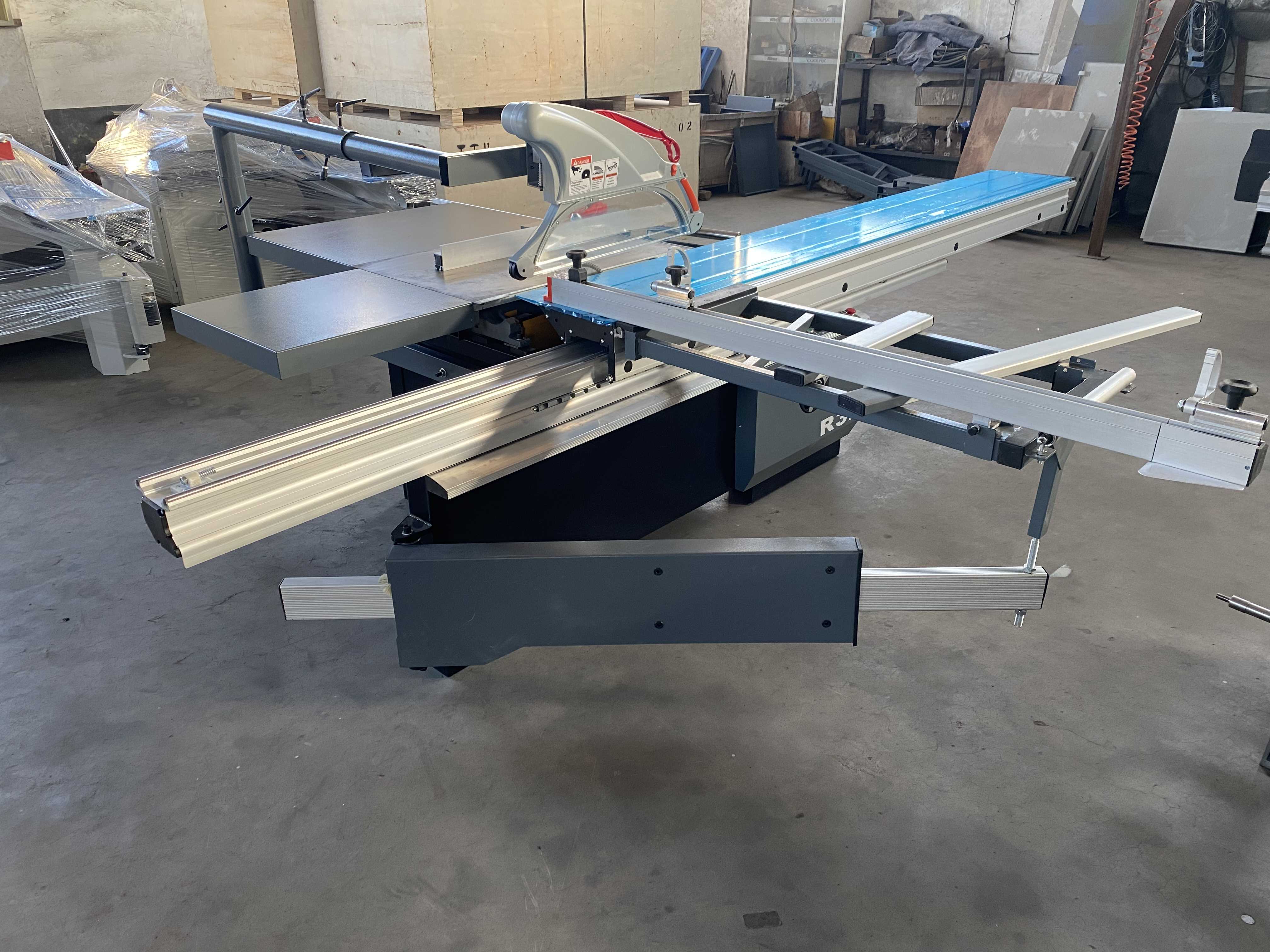

High quality mas structure 6130 sliding table panel saw wood cutting machine for wood furniture cabinet
Technical parameters
|
Model |
MJ90 2800mm |
MJ45 3000mm |
MJ45 3200mm |
|
Sliding table size |
2800*320mm |
3000*375mm |
3200*375mm |
|
Max. cutting length |
2750mm |
2950mm |
3150mm |
|
Max. cutting width |
1250mm |
1250mm |
1250mm |
|
Max. cutting thickness |
80mm |
80mm |
80mm |
|
Main saw blade diameter |
300mm |
300mm |
300mm |
|
Main saw blade speed |
4000/6000rpm |
4000/6000rpm |
4000/6000rpm |
|
Main saw spindle diameter |
30mm |
30mm |
30mm |
|
Slanting angle of sawing group |
90° |
0-45° |
0-45° |
|
Main saw motor power |
4.0/5.5kw |
4.0/5.5kw |
4.0/5.5kw |
|
Line saw blade diameter |
120mm |
120mm |
120mm |
|
Line saw blade speed |
8000rpm |
8000rpm |
8000rpm |
|
Scoring saw spindle diameter |
20mm |
20mm |
20mm |
|
Line saw motor power |
0.75/1.1kw |
0.75/1.1kw |
0.75/1.1kw |
|
Net weight |
600kg |
700kg |
750kg |
|
Overall size |
2850*3050*900mm |
3050*3100*900mm |
3250*3150*900mm |
