Best edge banding machine for small shops

High speed automatic edge banding machine with edge banding, trimming , buffing and end cutting edge bander.
Contact

Product Details

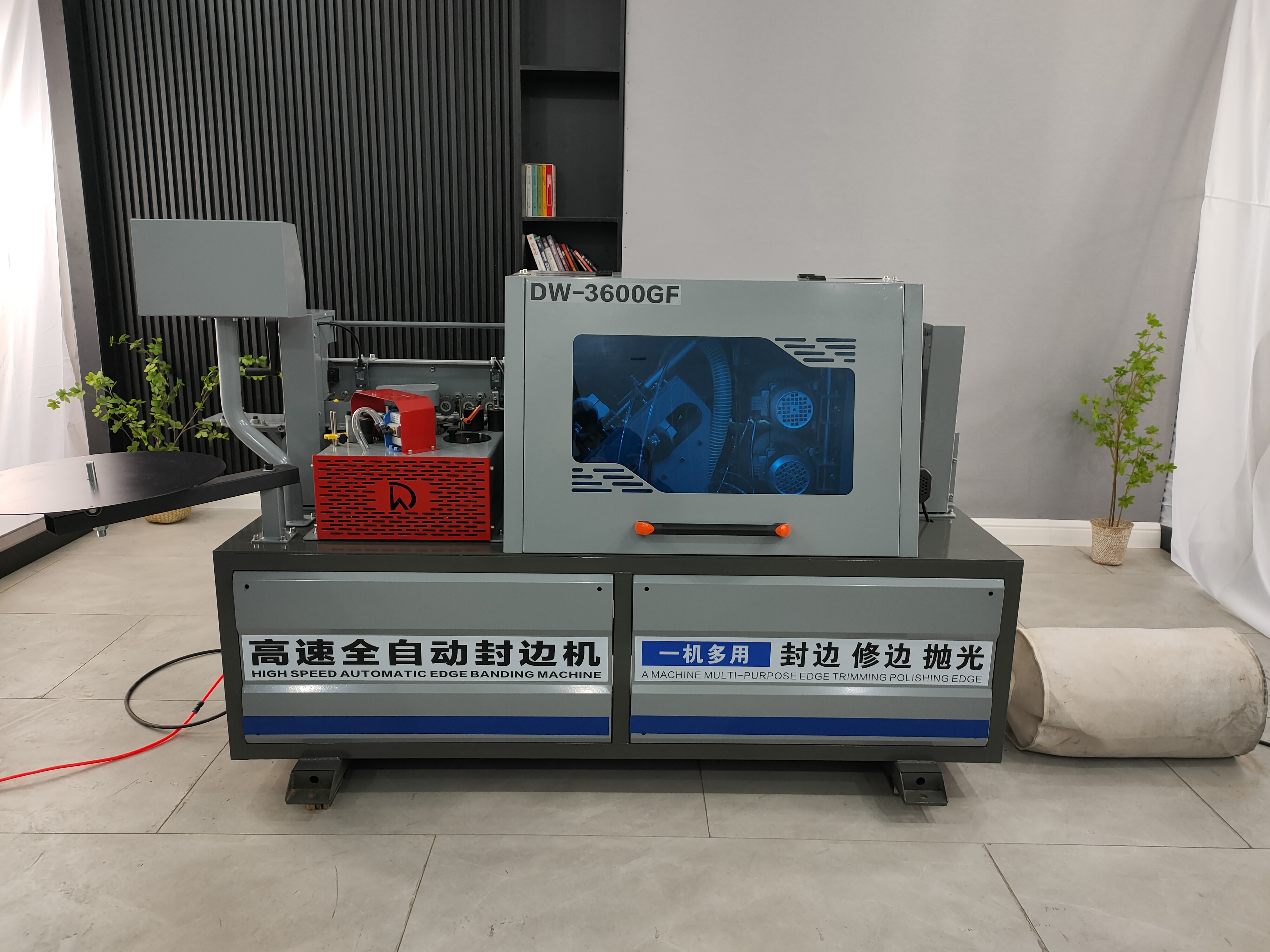

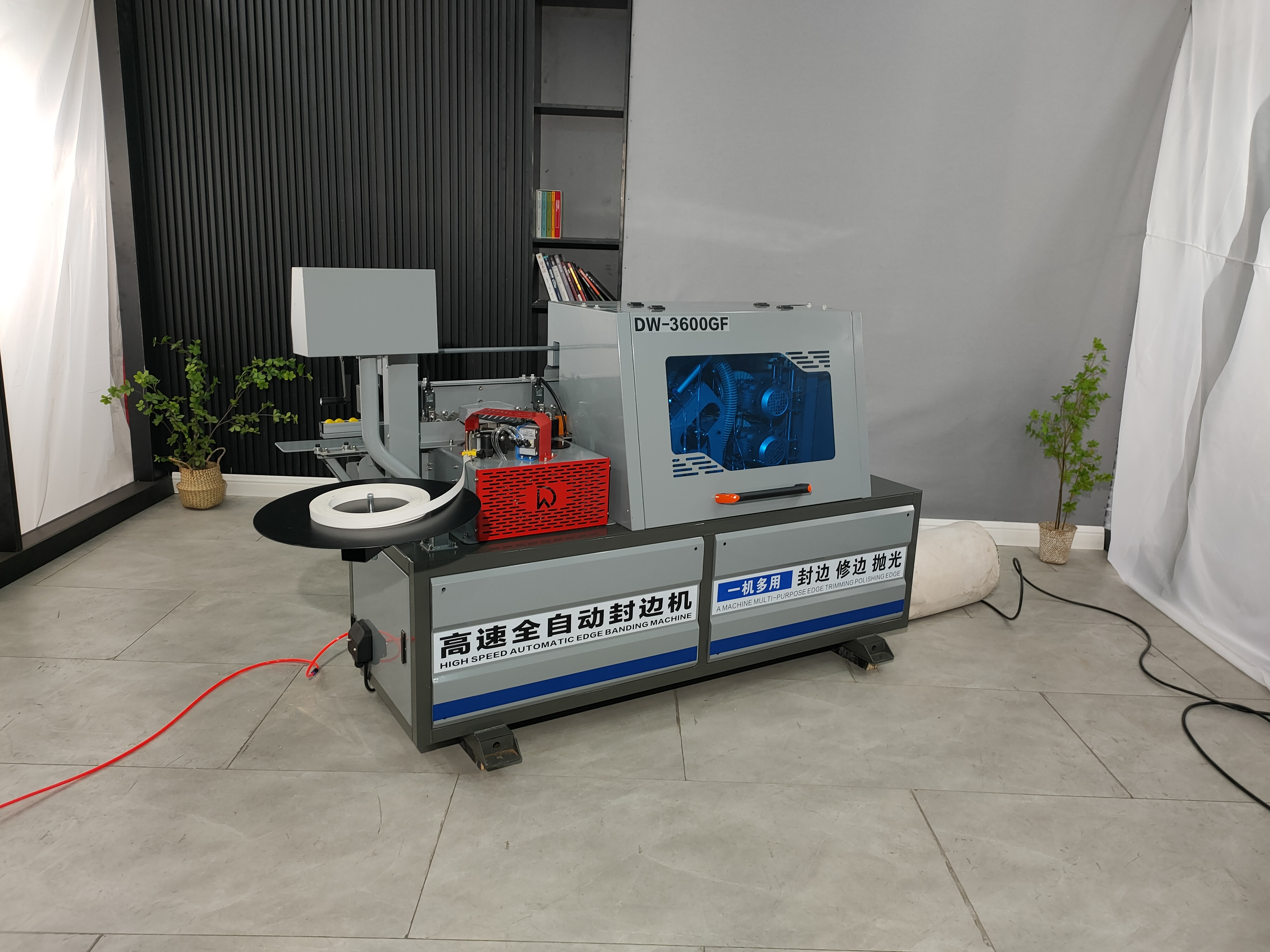

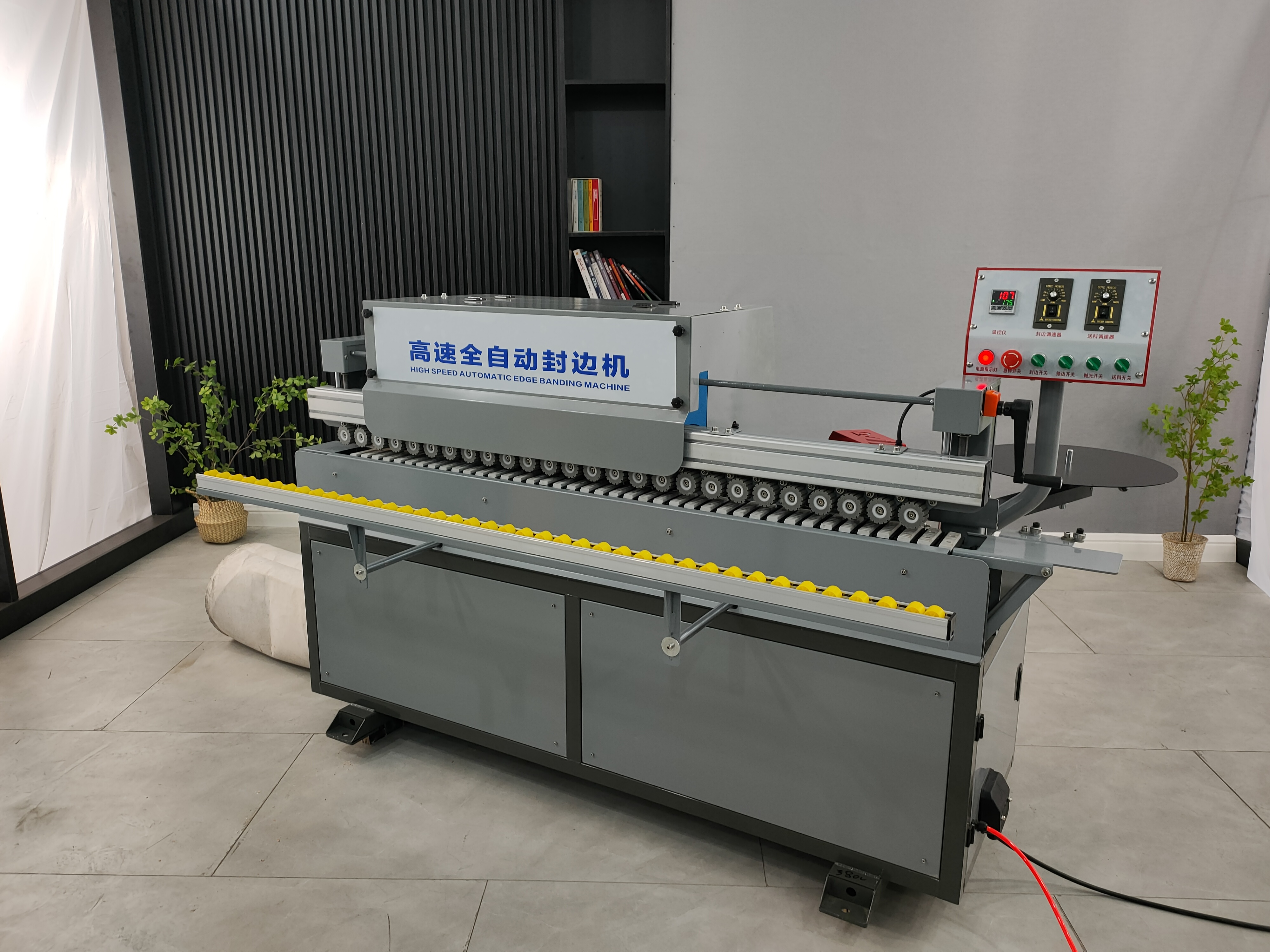

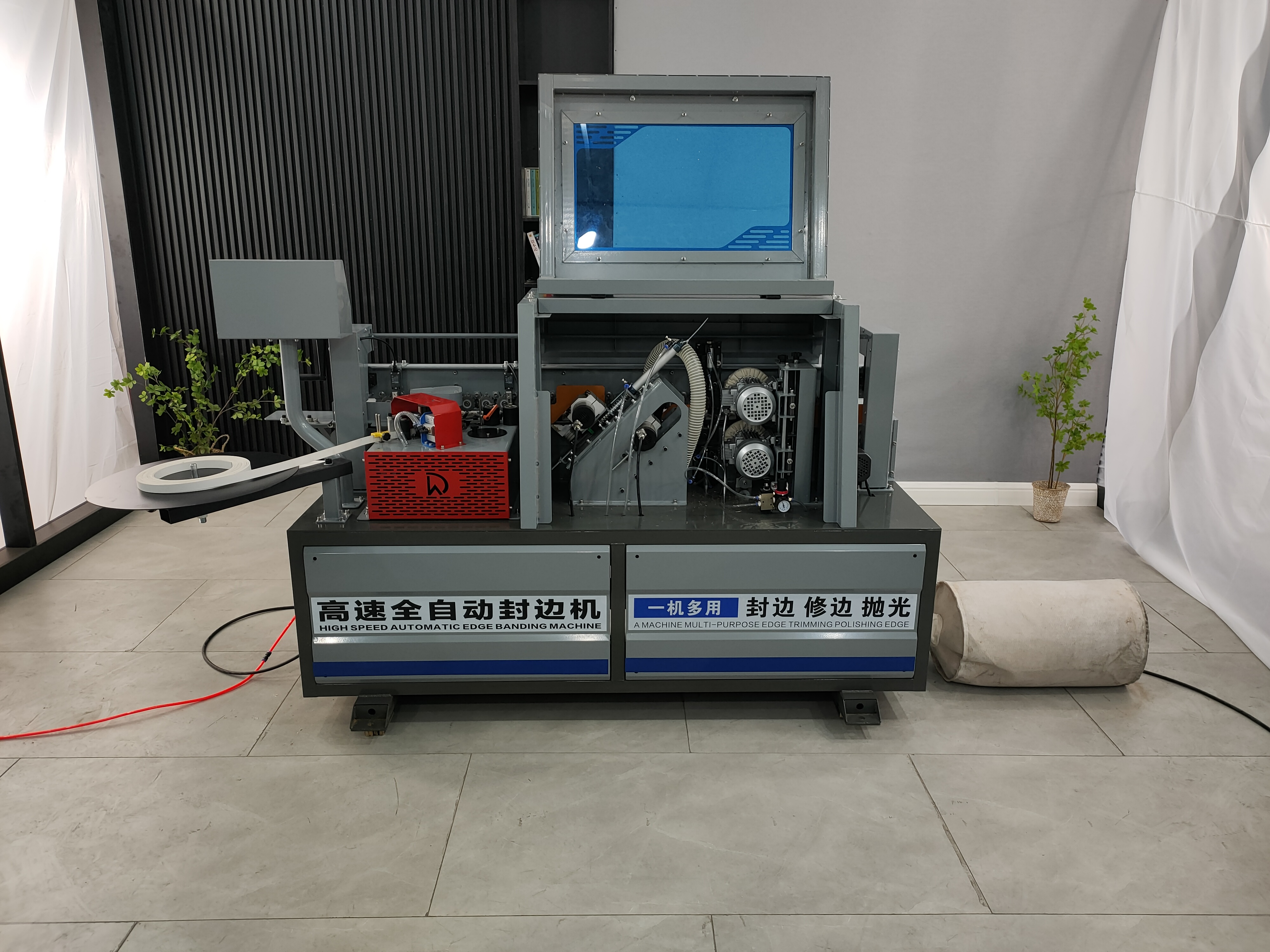

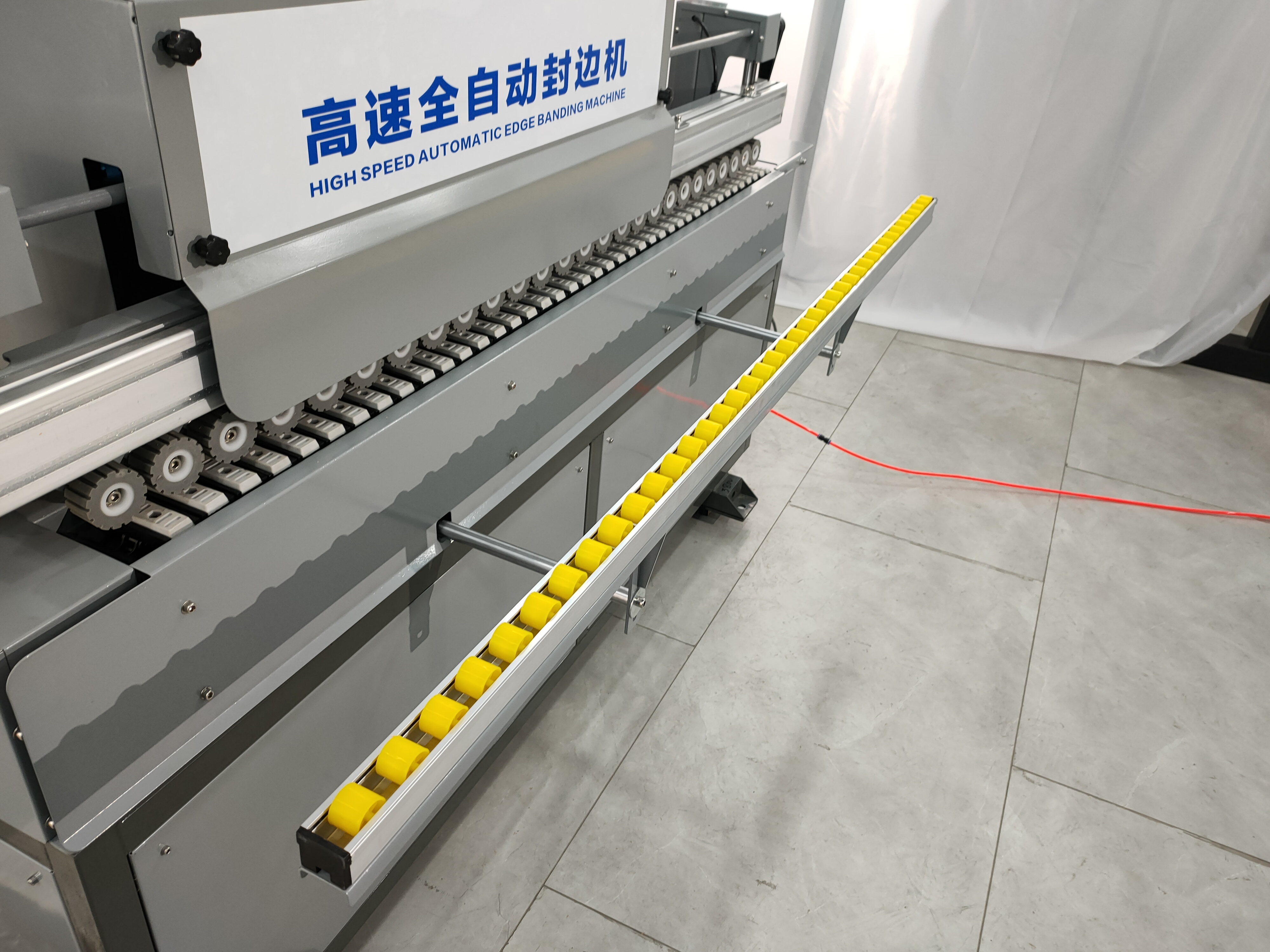

One of the key features of the DW3600 is its high-speed operation, which allows for fast and efficient edge banding of a wide variety of materials. This makes it an ideal choice for woodworking shops and manufacturers looking to increase productivity and reduce production times. The machine also boasts a user-friendly interface and intuitive controls, making it easy for operators to set up and operate the machine with minimal training.

In addition to its speed and ease of use, the DW3600 also offers a range of advanced cutting and trimming capabilities. Its precision cutting and trimming mechanisms ensure clean, accurate edges on finished pieces, reducing the need for additional finishing work and increasing the overall quality of the final product.

The machine’s advanced glue application system is another standout feature. It utilizes state-of-the-art technology to apply adhesive to the edge of the workpiece with precision and consistency, ensuring strong, durable bonds that will stand up to the rigors of daily use.

The DW3600 also offers a variety of customization options, allowing users to tailor the machine to their specific needs and preferences. Whether it’s the choice of different edge banding materials, the ability to adjust cutting and trimming settings, or the option to add additional features and accessories, the DW3600 can be adapted to suit a wide range of edge banding requirements.

Product Paramenters

VOLTAGE :380V THREE-PHASE FOUR-WIRE

PRODUCT NUMBER: DW-3600GF

EQUIPMENT SIZE:2200*650*1250mm

TOTAL POWER:4.9KW

EDGE BANDING TYPE: STRAIGHT EDGE BANDING

TOTAL WEIGHT: 320KG

EDGE BAND HEIGHT :0-50MM

EDGE BAND THICKNESS: 0.3-3MM

MINIMUM LENGTH OF PLATE: 200MM

EDGE BANDING POWER I SPEED: 160W0-14m/min

TRANSMISSION POWER ISPEED: 180W0-14m/min

TRIMMING POWERISPEED: 800W*2 24000r/min

POLISHING POWER /SPEED: 400W*2

EQUIPMENT AIR PRESSURE: 0.4-0.6mpa

STANDARD FUNCTIONS: GLUING,TRIMMING,TRIMMING,FRONT AND REAR,SCRAPING,POLISHING,VACUUMING
