Industrial air compressor 4-in-1 air compressor for laser cutting screw air compressor with dryer ASME CE UL

Contact

Product Details

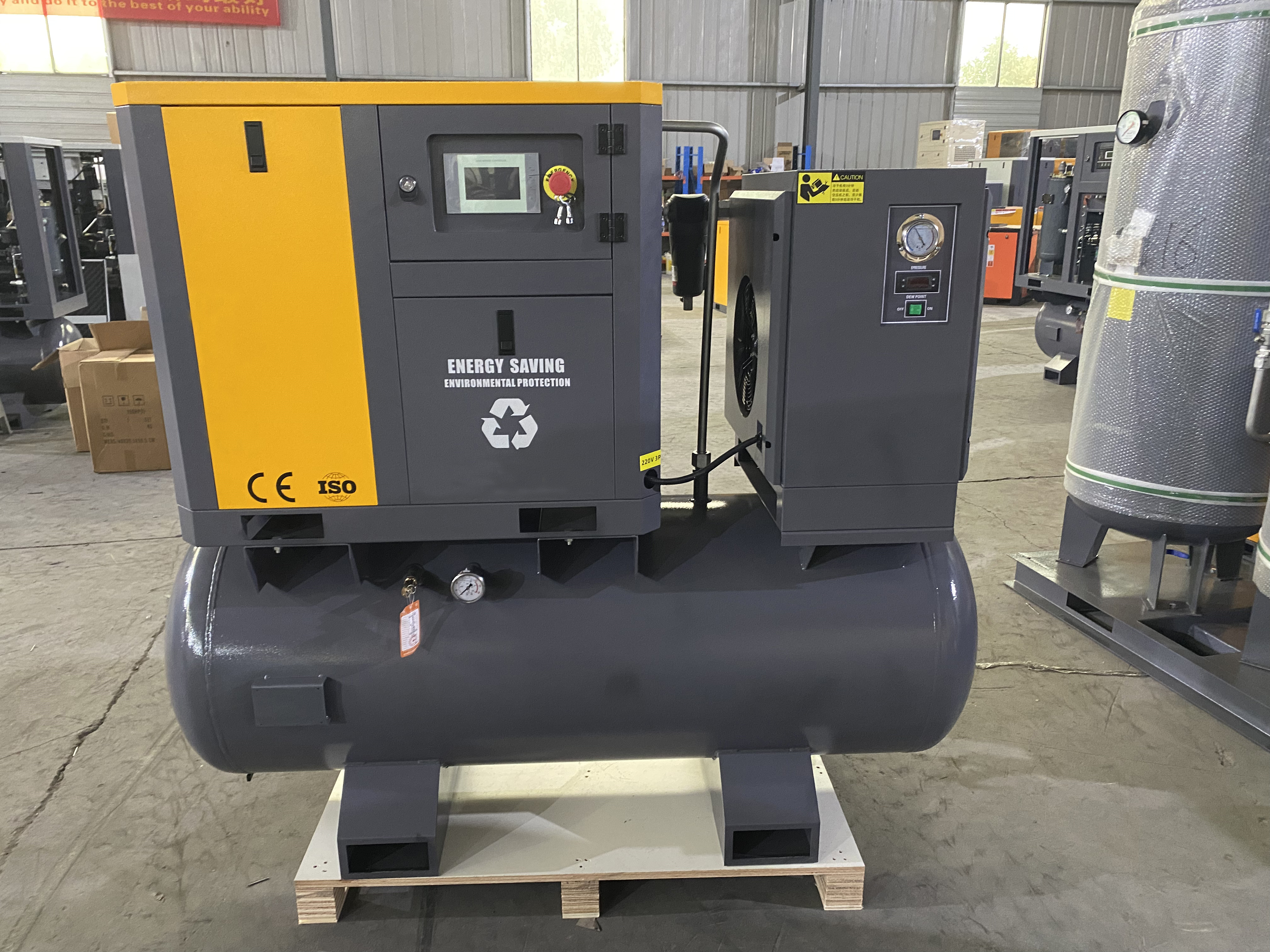

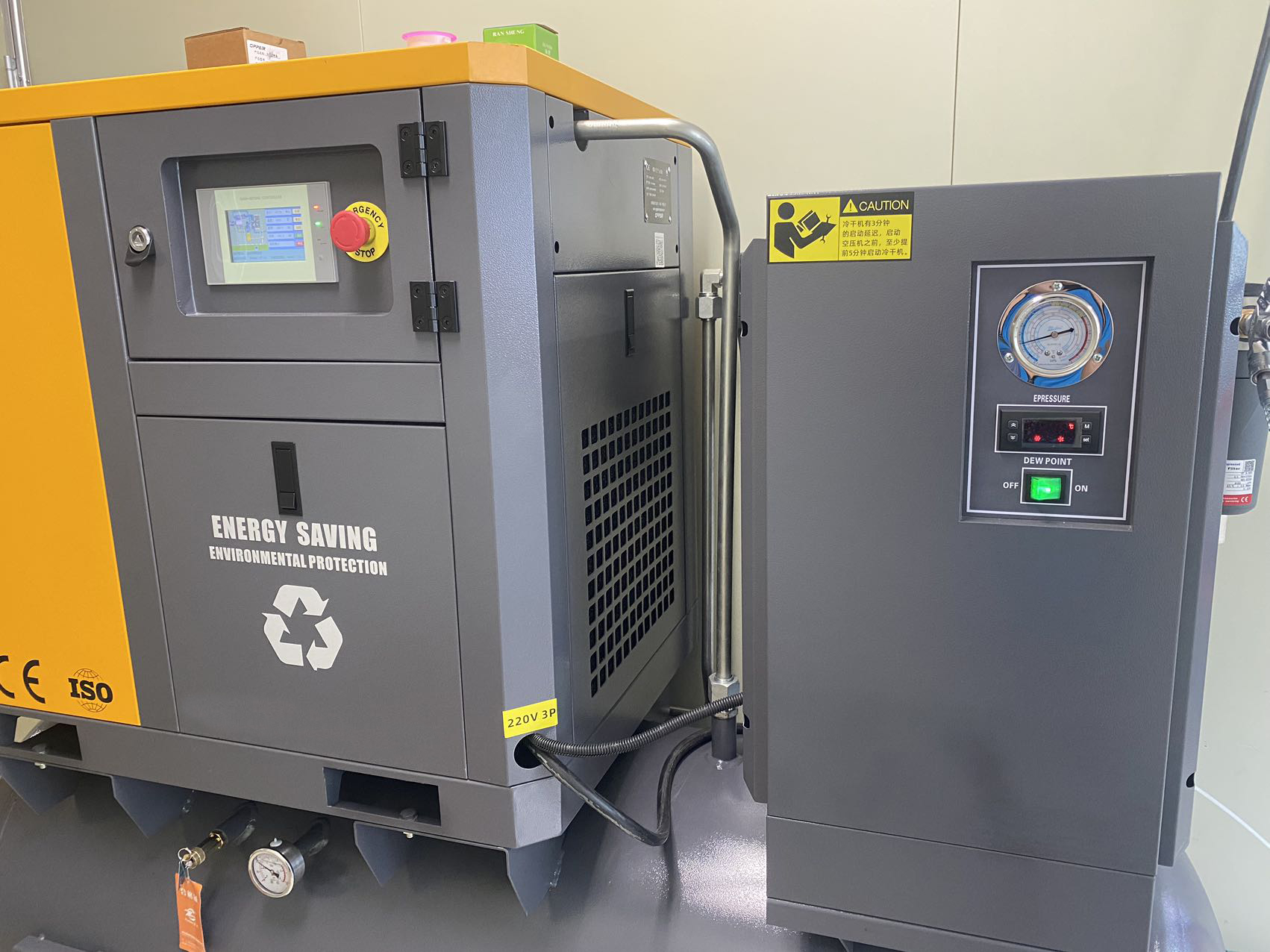

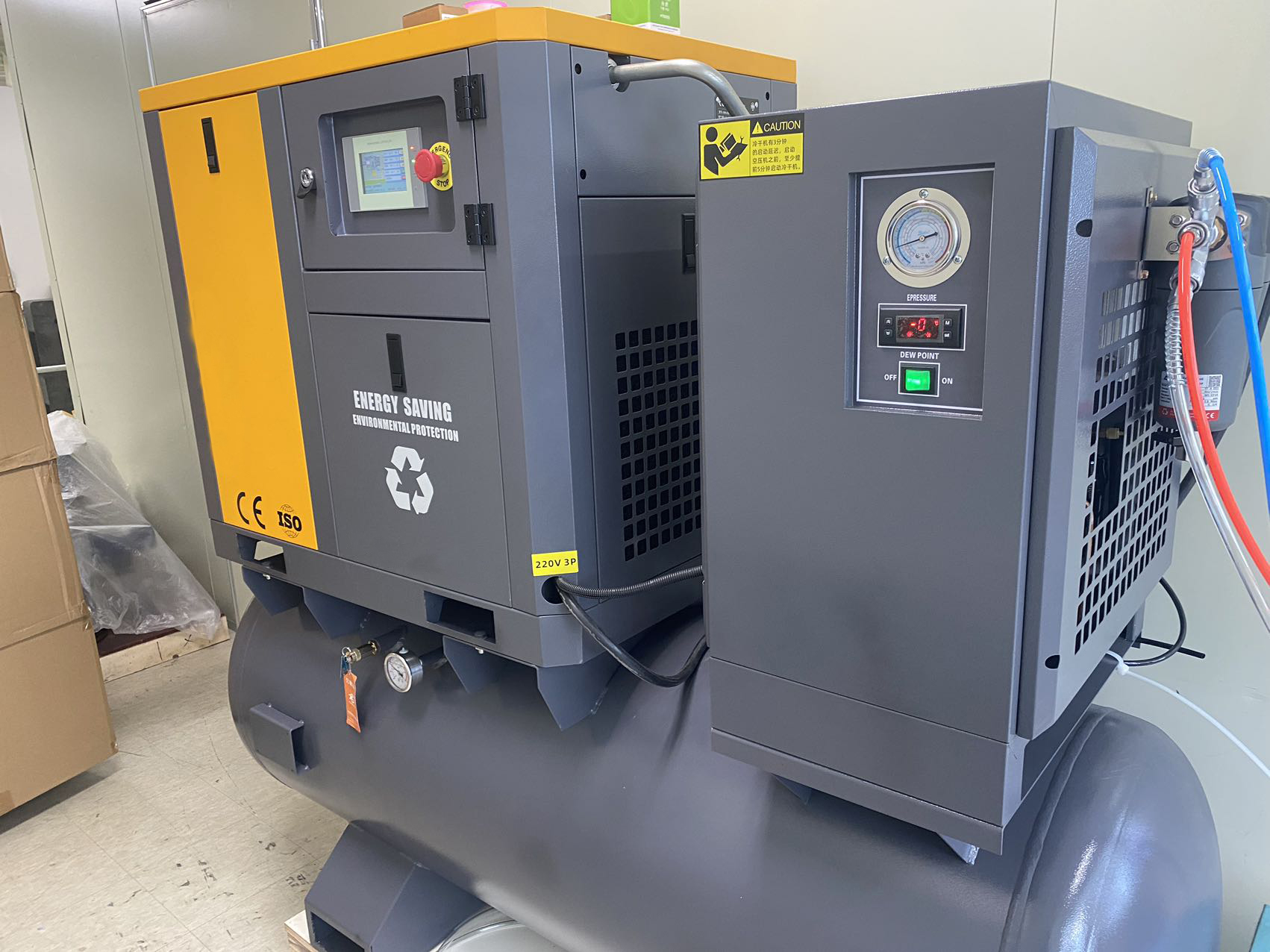

Tank and Dryer Filter Mounted Screw Air Compressor (4-in-1 type)
Model
AHB-10A
Free air deliver/Discharge pressure(m³/min/Bar)
0.75(m³/min)/8 bar
Free air deliver /Discharge pressure   (CFM/PSI)
27/116
Compression stage
Single stage
Ambient temprerature
-5--+45℃
Cooling mode
Air cooling
Tank volume
300L
Lubricant (L)
3.7L
Noise Level (Db)
62±2
Drive method
Belt driven
Electricity (V/ph/Hz)
380v/220v/customized voltage
Motor power (KW/HP)
7.5kw/10hp
Starting method
Y-△Starter (Star delta starting)
Dimension L*W*H (mm)
1900*730*1520mm
Net Weight (kg)
425kg
Air outlet diameter (inch)
1/2''
